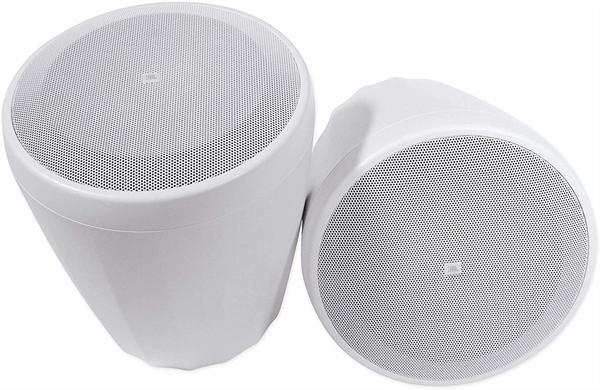

CONTROL 65P/T-WH | C65P/T-WH 5.25" FULL-RANGE PREMIUM PENDANT, 120 DEGREE CONICAL COVERAGE, WHITE (PRICE EA, BY PAIRS)

The Control 65P/T is a compact full-range pendant speaker featuring JBL’s RBI (Radiation Boundary Integration) technology, designed to deliver consistent and wide audio coverage throughout the listening area.

• RBI Radiation Boundary Integrator Technology
• 120° conical coverage
• 5.25" (130 mm) low-frequency driver
• Silk-dome tweeter for high-fidelity sound
• 75 W, 8 ohms, 60W multi-tap transformer
• White

Frequency Range (-10dB)	55 Hz – 20 kHz
Frequency Range (±3 dB)	78 Hz – 18 kHz
Power Rating	75 W continuous pink noise, 150 W continuous program power, 300 W peaks
Nominal Sensitivity	86 dB
Coverage Angle	120° conical
Directivity Factor (Q)	5.3
Directivity Index (DI)	7.2 dB
Maximum SPL (1m)	105 dB continuous pink noise, 111 dB peak
Impedance	8 ohms
Transformer Taps	70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W
Transformer Insertion Loss	0.5 dB @ 7.5 W and 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers	LF - polypropylene-coated paper with butyl rubber surround, 25 mm copper voice coil, vented fiberglass resin former; HF - 20 mm textile soft-dome, neodymium magnet, ferro-fluid cooling, aluminum voice coil former
Enclosure	High impact polystyrene
Baffle	Zinc-plated steel with powder-coat finish and removable foam backing
Outdoor Capability	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; IP44 splashproof rating
Input Connectors	Two removable locking euro-block 2-pin connectors with screwdown terminals; max wire 12 AWG; rubber terminal covers included
Suspension	Two identical systems with 4.5 m 2 mm galvanized-steel wire rope cables, spring-clips, and Gripple adjustable-height fasteners; SWL rating 45 kg
Safety Agency	Listed per UL1480, UL1876, UL1598, UL2239; compliant with IEC60849/EN60849; certified by TUV and CSA
Included Accessories	Two suspension cables, two 2-pin euro-block connectors, two rubber connector covers
Colors	White; paintable
