Item # CONTROL 65P/T

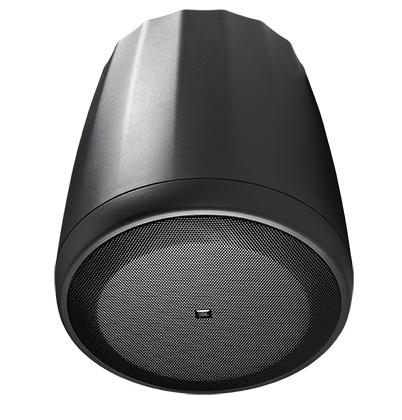

5.25" COMPACT PENDANT SPEAKER, 120° CONICAL COVERAGE/ 75W, 8OHM, 60W MULTI-TAP TRANSFORMER / BLACK
Item # CONTROL 65P/T
5.25" COMPACT PENDANT SPEAKER, 120° CONICAL COVERAGE/ 75W, 8OHM, 60W MULTI-TAP TRANSFORMER / BLACK
- UM: EA
- Estimated Weight: 20.0
- Brand: JBL / HARMAN
Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.
Features
RBI Radiation Boundary Integrator Technology
120° conical coverage
5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer
Black
|
Frequency Range (-10dB) |
55 Hz – 20 kHz |
|
Frequency Range (±3 dB) |
78 Hz – 18 kHz |
|
Power Rating |
75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power |
|
Nominal Sensitivity |
86 dB |
|
Coverage Angle |
120° (+20°/-10°) |
|
Directivity Factor (Q) |
5.3 |
|
Directivity Index (DI) |
7.2 dB |
|
Maximum SPL (1m) |
105 dB continuous pink noise, 111 dB peak |
|
Impedance |
8 ohms |
|
Transformer Taps |
70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W |
|
Transformer Insertion Loss |
0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W |
|
Drivers |
LF: 130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former, HF: 20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former |
|
Enclosure |
High impact polystyrene |
|
Grille |
Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
|
Outdoor Capability |
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
|

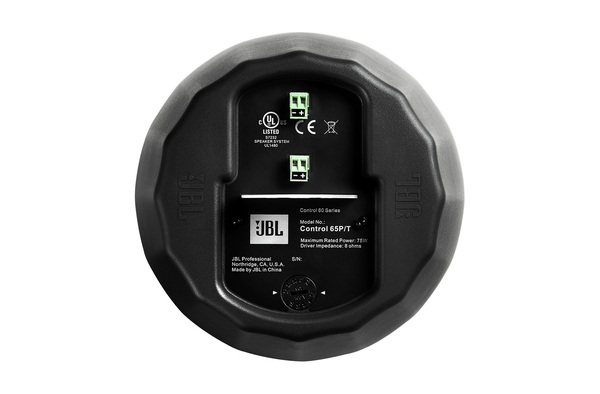

Input Connectors |
Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
|
Suspension |
Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
|
Safety Agency |
Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. |
|
Dimensions (H x W x D) |
234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. |
|
Net Weight (each) |
3.7 kg (8 lbs) |
|
Shipping Weight (pair) |
8.7 kg (19 lbs) |
|
Included Accessories |
Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors |
|
Optional Accessories |
MTC-PC60 top panel / terminal cover |
|
Colors |
Available in black or white (-WH). Paintable. |
