Item # CONTROL 60PS/T-WH
HIGH IMPACT, 150W DIRECT RADIATING PENDANT SUBWOOFER WITH BUILT-IN PASSIVE CROSSOVER / WHITE
- MAP: $500.00 / EA
- List Price: $500.00 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 2
- Case Qty: 2
Click image to enlarge
Item # CONTROL 60PS/T-WH
HIGH IMPACT, 150W DIRECT RADIATING PENDANT SUBWOOFER WITH BUILT-IN PASSIVE CROSSOVER / WHITE
- UM: EA
- Estimated Weight: 18.5
- Brand: JBL / HARMAN

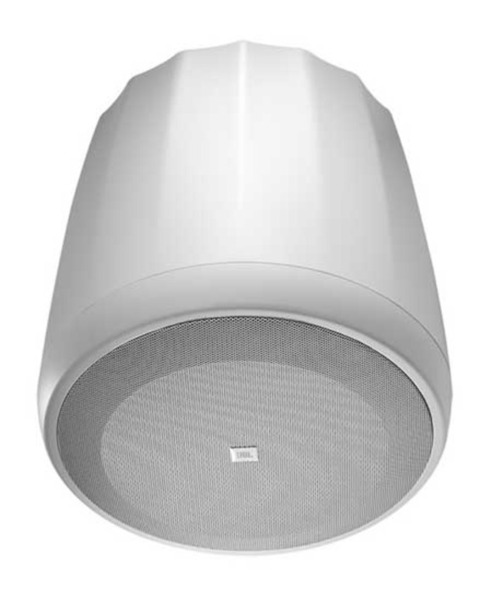

The Control 60PS/T pendant subwoofer loudspeaker includes a built-in crossover and a 200 mm (8 in) long-excursion low-frequency driver. It has a power handling capacity of 150 W. The driver uses a butyl rubber surround and a polypropylene-coated cone for moisture resistance. It employs a 50 mm (2 in) high-temperature voice coil wound on a low-mass fiberglass former. The design supports bass transient response and maintains stability under high power and high duty cycle operating conditions.
- 150W direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers
- 200 mm (8 in) long-excursion driver
- 8 ohm (150 W) and 70V/100V (100 W) operation
- Hanging hardware with 4.5 m (15 ft) galvanized steel cable and adjustable clamp
- White
- UL listed (speaker and hanging cable system)
Frequency Range | 42 Hz – 350 Hz |
---|---|
Frequency Response | 55 Hz – 125 Hz |
Power Rating | 300 W continuous program, 150 W continuous pink noise |
Nominal Sensitivity | 88 dB (2.83V/1m) |
Maximum SPL | 107 dB average, 113 dB peak @ 1 m |
Impedance | 8 ohms |
Transformer Taps | 110W, 55W, 30W, 15W at 70V, set via rotary tap-selector switch |
Transformer Insertion Loss | approx. 0.94 - 1.10 dB depending on tap |
Standalone Hookup | Connect to Input connector; built-in low-pass filter engaged; Loop Out parallel with Input |
Subwoofer-Satellite Hookup | For 2 or 4 satellite speakers only; satellite outputs high-passed; low-Z satellites (8 to 16 ohms) |
Drivers | 200mm polypropylene-coated paper cone, butyl rubber surround, 50mm high-temp copper voice coil, vented fiberglass resin former |
Enclosure Material | High impact polystyrene |
Baffle | Zinc-plated steel with powder-coat and removable foam backing |
Environmental | Meets Mil Spec 810 (humidity, salt spray, temperature, UV); IP44 splash-proof rating |
Input Connectors | 6 removable locking 2-pin connectors with screw terminals, max wire 12 AWG, includes rubber covers |
Safety Agency Certifications | UL1480 (speaker), UL1876 (transformer), IEC60849/EN60849, UL1598, UL2239, TUV, CSA |
Included Accessories | Two suspension cable systems, six locking 2-pin euro-block connectors, six rubber cover boots |
Colors | White, paintable |
Coverage Angle | 140° conical |
