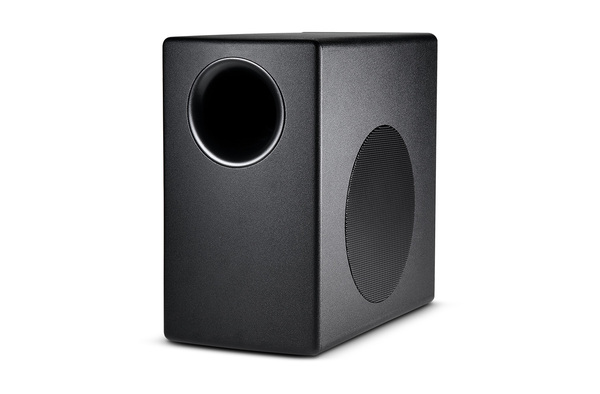

CONTROL 50S/T | COMPACT SURFACT-MOUNT SUBWOOFER WITH BUILT-IN CROSSOVER. 200 MM (8 IN) LONG-THROW WOOFER,

The Control 50S/T surface-mount subwoofer is designed for subwoofer-satellite loudspeaker systems and delivers a continuous power rating of 150 W, with a peak power of 600 W. It features a high-power, long-excursion 200 mm (8 inch) driver equipped with a high-mass cone that extends low-frequency response. The driver includes a 38 mm (1.5 inch) four-layer copper voice coil for increased motor strength, an aluminum former to improve transient response, and a rubber half-roll surround to support bass performance.

• 32 Hz – 20 kHz high fidelity sound
• Selectable 70V/100V for distributed lines or low impedance
• Supports two or four satellite speakers per system
• Available in black or white

Frequency Range	32 Hz – 200 Hz
Frequency Response	50 Hz – 150 Hz
Power Capacity	300 W Continuous Program Power (2 hrs), 150 W Continuous Pink Noise (2 hrs), 200 W Continuous Program Power (100 hrs), 100 W Continuous Pink Noise (100 hrs)
Sensitivity	95 dB (near corner), 89 dB (center of wall)
Maximum SPL (1m)	115 dB average, 121 dB peak (near corner), 109 dB average, 115 dB peak (center of wall)
Impedance	8 ohms (bypass/through mode)
Transformer Taps	80W, 40W, 20W, 10W @ 70V, 8 ohm bypass/through
Drivers	200 mm (8 in) polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
Input Connectors	Six removable locking 2-pin connectors with screw-down terminals, max wire 12 AWG (2.5 mm²)
Enclosure	Structural plywood (top, bottom, front & bottom), MDF (port & terminal panels), painted zinc-plated metal baffle
Coverage Angle	Omnidirectional
