CONTROL 322C | HIGH OUTPUT 12' CEILING COAX

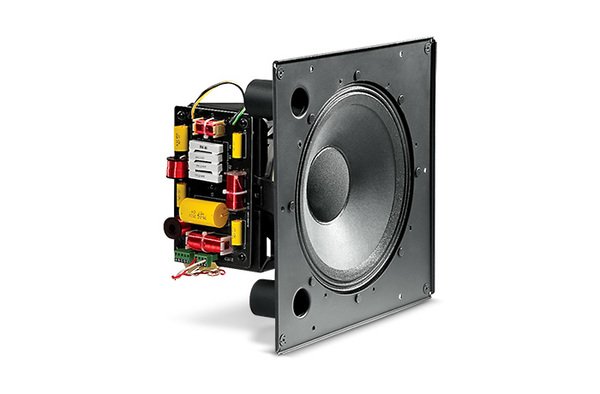

The Control 322C is a 12-inch coaxial ceiling loudspeaker designed for high output performance. It features a coaxial point source configuration that integrates a woofer and a tweeter into a single assembly, optimized for ceiling installation.

• 90° broadband pattern control
• Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 in) voice coil
• Medium-format compression driver
• Clarity for speech and vocals, extended frequency response for music
• 400 Watts power handling with high sensitivity
• Advanced high-slope crossover for constant coverage and smooth midrange

Frequency Range	32 Hz – 20 kHz
Power Rating	400 W continuous pink noise (1600 W peak), 2 hrs; 250 W continuous pink noise (1000 W peak), 100 hrs
Sensitivity	95 dB (1 kHz - 16 kHz)
Frequency Response (±3 dB)	48 Hz – 19 kHz
Coverage Angle	90° conical, constant directivity
Directivity Factor (Q)	9 (1 kHz - 16 kHz)
Directivity Index (DI)	9.5 dB (1 kHz - 16 kHz)
Crossover Network	1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Impedance	8 ohms
Maximum SPL (1m)	121 dB (127 dB peak)
