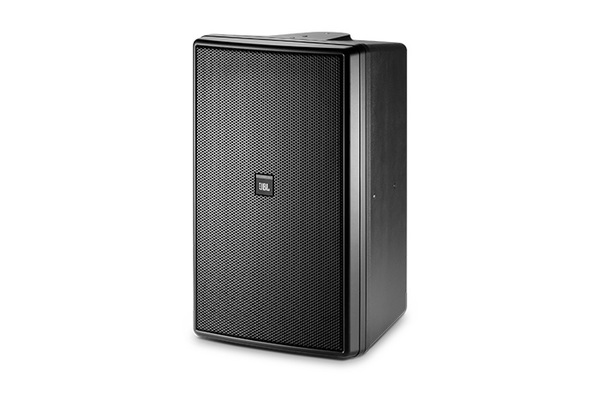

This product is a two-way monitor speaker designed for both indoor and outdoor use. It features a high-output configuration intended to deliver clear audio performance across varied environments.

• 250 mm (10 in) woven fiberglass cone LF driver with 52 mm (2 in) voice coil
• High-output 2414H-C compression driver with 25 mm (1 in) exit and high-temperature polymer diaphragm
• 250 Watt capability (8o thru setting) plus 150 Watt transformer for 70V or 100V distributed lines
• Extended bandwidth with smooth frequency response
• Outdoor-capable design with WeatherMax multi-layer grille and optional marine-kit grille
• 110° x 110° symmetrical coverage
• Includes InvisiBall mounting hardware and ten 6 mm attachment points for suspension and U-bracket
• Sealed input panel cover and screw-down input terminals for secure connection

Frequency Range	33Hz – 19kHz
Power Ratings	250 W (1000 W peak) for 2 hrs, 200 W (800 W peak) for 100 hrs
Maximum SPL (1m)	116 dB continuous, 123 dB peak
Sensitivity	92 dB
Coverage Angle	110° H x 110° V
Directivity Factor (Q)	5.7 (500 Hz to 10 kHz average)
Directivity Index (DI)	7.3 dB (500 Hz to 10 kHz average)
Impedance	8 ohms
Crossover Type	2nd order low-pass and high-pass with conjugate shaping circuitry
Outdoor Capability	IP-55 per IEC529, exceeds MilSpec 810 and passes MilStd-202F for salt spray
