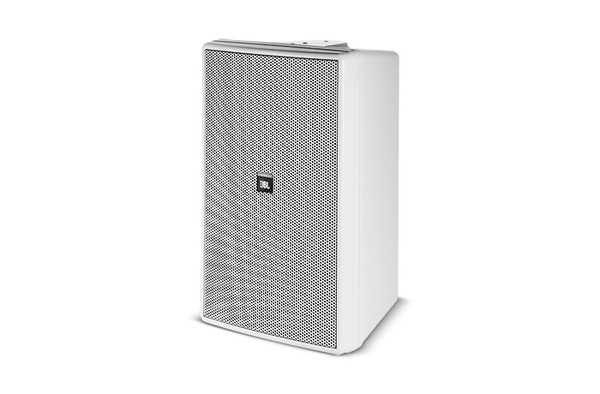

The Control 30 is a three-way indoor/outdoor monitor speaker designed with high-power components and a coaxial driver configuration. It features a computer-optimized horn and a specialized crossover network to deliver a broad frequency response and controlled sound dispersion. The speaker enclosure incorporates patented manufacturing techniques to enhance acoustic performance and durability while maintaining a compact form factor.

• Extended bandwidth, smooth frequency response
• Fully outdoor-capable design with WeatherMax
• 120° x 110° HF coverage
• 150 W transformer for 70 V or 100 V lines with 8 ohms
• SonicGuard overload protection
• 250 mm fiberglass/Kevlar cone LF woofer with neodymium magnet coaxial 125 mm anodized aluminum cone MR and 25 mm titanium diaphragm compression driver
• Includes InvisiBall mounting hardware and ten 6 mm attachment points for suspension and optional U-bracket
• Sealed input panel cover and screw-down input terminals

Frequency Range	38 Hz – 17 kHz (-10 dB)
Power Capacity	500 W Continuous Program Power; 250 W Continuous Pink Noise
Transformer Taps	70 V: 150 W, 75 W, 38 W, 19 W; 100 V: 150 W, 75 W, 38 W
Frequency Response	40 Hz – 16 kHz (± 3 dB)
Maximum SPL (1m)	Short-Term: 123 dB; Long-Term: 117 dB
Sensitivity	93 dB, 1W @ 1m
Coverage Angle	120°H x 110°V
Impedance	4 ohms
Crossover Network	3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass HF with conjugate shaping circuitry
Drivers	LF: 250 mm fiberglass/Kevlar cone, 50 mm voice coil, neodymium magnet; MF: 125 mm anodized aluminum cone, 25 mm voice coil; HF: 25 mm compression driver, titanium diaphragm
