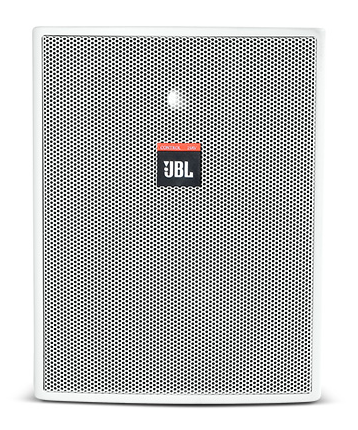

The Control 25AV is a compact two-way loudspeaker designed for both indoor and outdoor use. It features a deep cabinet construction housing high-power components and a complex crossover network to deliver consistent audio reproduction.

• Video shielded for use near video monitors
• Smooth frequency response
• Stainless steel grill for harsh environments
• 60 W transformer for 70 V or 100 V lines with 8 ohms thru
• SonicGuard overload protection
• 130 mm polypropylene coated woofer
• 20 mm titanium coated horn-loaded tweeter
• Includes InvisiBall mounting hardware and sealed input panel cover
• Screw-down input terminals
• 100° x 100° high frequency horn

Frequency Range	70 Hz - 23 kHz (-10 dB)
Power Capacity	200 W Continuous Program Power, 100 W Continuous Pink Noise
Transformer Taps	70V - 60 W, 30 W, 15 W, 7.5 W; 100V - 60 W, 30 W, 15 W
Sensitivity	87 dB SPL, 1 W @ 1 m
Coverage Angle	100° Horizontal x 100° Vertical
Maximum SPL (1m)	113 dB continuous peak pink noise
Impedance	8 ohms
Crossover Network	Second order low pass, second order high pass, optimized for flat response
Overload Protection	Full-range power limiting and internal fuse
Outdoor Capability	Exceeds MIL-STD-810 for humidity, salt spray, temperature & UV; IEC 529 IP-X4 splashproof rating
