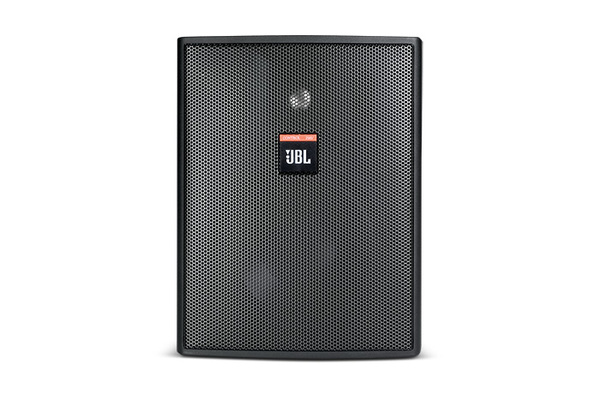

The Control 25AV is a compact two-way loudspeaker designed for indoor and outdoor use. It features a deep cabinet construction and high-power components integrated with a complex network to provide smooth audio reproduction across its frequency range.

• Video shielded for use near video monitors
• Smooth frequency response
• Stainless steel grill
• 60 W transformer for 70 V or 100 V lines with 8 ohms thru
• SonicGuard overload protection
• 130 mm polypropylene coated woofer
• 20 mm titanium coated horn-loaded tweeter
• Includes InvisiBall mounting hardware and sealed input panel cover
• Screw-down input terminals
• 100° x 100° high frequency horn

Frequency Range	70 Hz - 23 kHz (-10 dB)
Power Capacity	200 W Continuous Program Power; 100 W Continuous Pink Noise
Sensitivity	87 dB SPL, 1 W @ 1 m
Coverage Angle	100°H x 100°V
Maximum SPL	113 dB continuous peak pink noise
Impedance	8 ohms
Crossover Network	Second Order Low Pass and High Pass, optimized for flat response
Drivers	LF 130 mm polypropylene-coated paper, HF 20 mm titanium coated PEI
Overload Protection	Full-range power limiting and internal fuse
Outdoor Capability	Exceeds Mil Spec 810; IEC 529 IP-X4 splashproof
