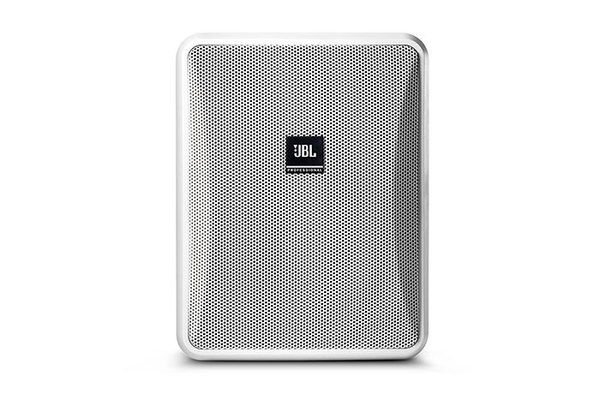

The Control 25-1L is a two-way speaker featuring a 5-1/4-inch driver and an 8-ohm impedance. It is designed for both indoor and outdoor use, providing wide coverage and consistent sound dispersion. The unit supports various mounting configurations and has an enclosure designed to integrate with diverse architectural environments.

• 5-1/4" woofer with woven fiberglass cone
• 3/4" PEI diaphragm tweeter with fluid cooling
• Built-in InvisiBall mounting hardware
• Available U-bracket
• Weather resistant enclosure and transducers
• 100° x 100° coverage
• 100 Watt power handling (200 Watt program)
• Frequency response 60 Hz – 20 kHz

Frequency Range	60 Hz to 20 kHz
Power Rating	200 W Continuous Program (2 hrs)
Maximum Input Voltage	25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m)	110 dB average Continuous Pink Noise (116 dB peak)
Sensitivity	90 dB, 1W/1m (average 100 Hz – 10 kHz)
Coverage Angle	100° H x 100° V
Impedance	8 ohms
Crossover Type	2nd order low-pass, 3rd order high-pass
Outdoor Capability	IP-44 per IEC529 (IP-55 with optional WeatherMax baffle and panel cover); exceeds MilSpec 810 and passes MilStd-202F and ASTM G85
Input Connectors	Screw-down terminal strip, zinc-plated copper with nickel-plated screws; accepts lugs and bare wire up to 12 AWG
