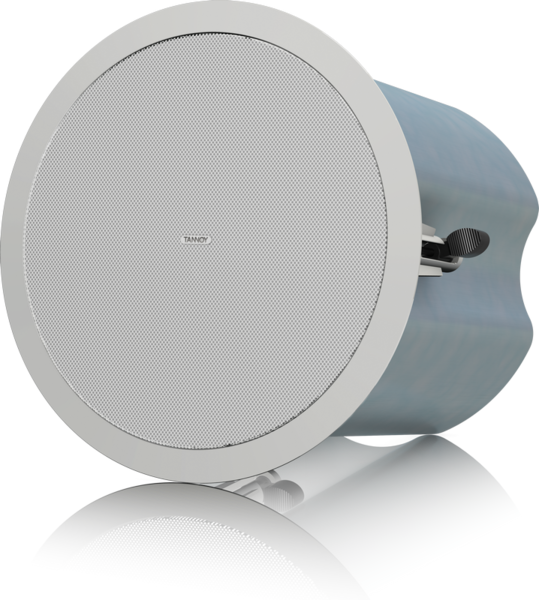

The CMS 603DC BM is a full bandwidth 320-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 603DC BM delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.
FEATURES
• Full range ceiling loudspeaker for installation applications
• 80 Watts continuous, 320 Watts peak power
• Next generation 6" Dual Concentric driver featuring Omnimagnet technology
• Torus Ogive waveguide for improved high frequency response and directivity
• Blind Mount version supplied with acoustically enhanced zinc plated steel back can
• Integrated single unit construction for ease of installation
• UL 1480 certified for general signaling systems
• UL 2043 certified for air-handling spaces
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Optimized for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
• Semi matt white finish fits unobtrusively in any environment
• Powder coated UV resistant perforated steel mesh grille with dust protection
• Removable magnetic grille for custom painting
• Optional ARCO designer grilles available for minimal architectural impact
• Self-aligning 4 way clamp mounting system
• Mounting C-ring and ceiling tile rails included
• 10-Year Warranty Program*
• Designed and engineered in the U.K.
