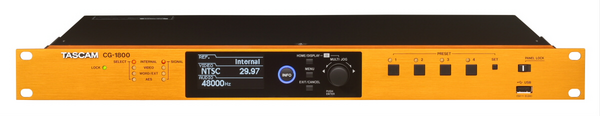

The CG-1800 master clock generator generates NTSC, PAL and HD Tri-level video clock – as well as word clock through BNC, AES/EBU and S/PDIF outputs – ensuring compatibility with any synchronization system

Features:

• Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
• External input connector that supports 10MHz, allowing creation of systems with even higher precision
• Jitter management circuit provides stable clock
• Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
• Numerous output connectors, including (12) word clock outputs, enabling the use in large-scale video/audio synchronization systems
• Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
• AES3 and AES11 signals can also be used for external master clock input sources
• Analyzer function that can measure output device termination
• Optimal levels can be provided to other devices by adjusting wordclock output levels
• Self-calibration function using an external oscillator (Atomic/GPS 10MHz, GPS PPS) *Use of the self-calibration function requires the use of a separate PPS-output 10MHz oscillator with a built-in GPS antenna.
• Word clock performance up to 192 kHz
• 0.1% pull-up/down for 24F(Film) and 29.97F(NTSC), and 4% pull-up/down for 24F(Film) and 25F(PAL)
• Up to (4) system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
• Durable nut-coupling BNC connectors made by Amphenol
• Independent circuit boards for each connector prevents contact failures due to twisting
• Three-prong IEC power cable included
• Panel-lock switch can be used to prevent inadvertent changes to unit operation
• 128x64-pixel organic EL display with a wide viewing angle
• Firmware updates possible using the USB port
• EIA 1U rack mount size
• RoHS-compliant product
