Item # C803AT87FRK
FIRE RATED 8" COAXIAL LOUDSPEAKERS, 16 WATT (UL LISTED) 70V-8W TRANSFORMER (PRICED EA, SOLD 6 PACK)
- MAP: $224.99 / EA
- List Price: $278.99 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 6
Item # C803AT87FRK
FIRE RATED 8" COAXIAL LOUDSPEAKERS, 16 WATT (UL LISTED) 70V-8W TRANSFORMER (PRICED EA, SOLD 6 PACK)
- UM: EA
- Estimated Weight: 16.7
- Brand: ATLAS IED

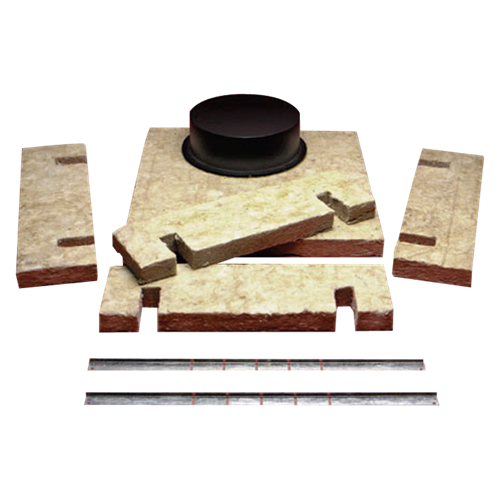

AtlasIED has developed the only speaker assemblies that are UL classified for fire-resistance in the United States. The C803AT87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). The C803AT87FRK assembly includes an enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer combinations approved for use in FR assemblies are FR versions of the industry standard AtlasIED Strategy Series C803AT87FRK speaker.
Features:
- Assembly Includes Enclosure Fiber Kit
- Quick Installation & Low Installed Cost
- Speaker System Has Been Tested in Accordance with UL Standard - Fire Test of Building Construction & Materials, ANSI/UL263
- UL Certified, Safety Listed to UL263
| Height | 10 3/4" (27.305 cm) |
|---|---|
| Width | 24" (60.96 cm) |
| Included Baffle | 51-8FR |
| Included Speaker | 95-8FR |
| Included Enclosure | C803AT87FR |
| Safety Listed | ANSI / UL 263 (ASTM E119, NFPA 251) |
| Warranty Period | 60 months from date of purchase |
