Item # C803A

8" COAXIAL LOUDSPEAKER 16W @ 8OHM

  • MAP: $61.99 / EA
  • List Price: $73.99 / EA
  • Log in to see if custom discounts apply

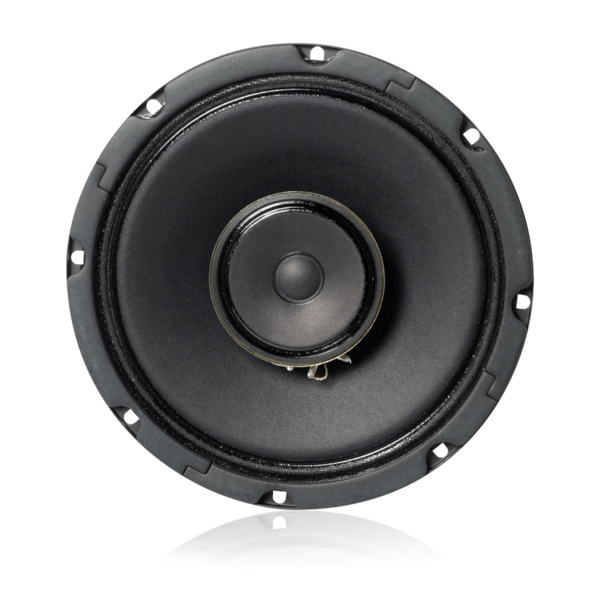

    C803A 8" COAXIAL LOUDSPEAKER 16W @ 8OHM
    Click image to enlarge
    C803A 8" COAXIAL LOUDSPEAKER 16W @ 8OHM

    Item # C803A

    8" COAXIAL LOUDSPEAKER 16W @ 8OHM

    • UM: EA
    • Estimated Weight: 3.5
    • Brand: ATLAS IED

    Model C803A. High-quality, 16-watt Model C803A utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter). Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

    Features:

    • Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
    • Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
    • Offers Proven Performance with Wide Frequency Response
    • Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
    • UL Certified, Safety Listed to UL1480A and UL2043
    Speaker Type Treated Paper
    Sensitivity 98dB (peak), 95dB (avg)
    Frequency Response 70Hz - 15.5kHz
    Power Taps 8 Ohms
    Dispersion 120°
    Depth 2 7/8" (7.3025 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.17 lbs (1.44 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase
