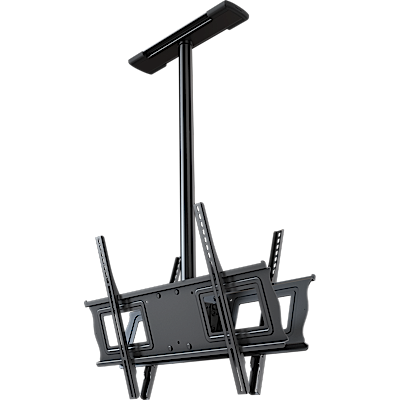

Item # C63D-36
COMPLETE CEILING INSTALLATION KIT WITH 3' FIXED EXTENSION DROP FOR 37" TO 75" DUAL BACK TO BACK SCRE
Click image to enlarge
Item # C63D-36
COMPLETE CEILING INSTALLATION KIT WITH 3' FIXED EXTENSION DROP FOR 37" TO 75" DUAL BACK TO BACK SCRE
- UM: EA
- Estimated Weight: 40.6
- Brand: CRIMSON
Includes universal screen adapter, 3′ fixed extension column (E3) and structural ceiling adapter (CA2) for mounting on 16″ joist centers. Continuous tilt of 20° forward and 360° rotation.
Features:
- Universal design
- VESA compatible
- Fixed drop length of 36″
- Fast and easy installation
- Up to 20° of continuous tilt and 360° rotation
- Pin-locking incremental tilt adjustment
- Post installation screen leveling without use of tools
- Through-column cable routing for an uncluttered look
- Decorative covers to hide ceiling bolts for a finished look
- Pre-sorted hardware pack for easy installation
| TV size range | 37” – 75” |
|---|---|
| Weight capacity | 150lb (68kg)each, 300lb (136kg) total |
| Max mounting pattern | 723x501mm |
| VESA mounting patterns | 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm |
| Tilt | +20°/-0° |
| Roll (side to side) | 6° tool less screen leveling |
| Rotation (yaw) | 360° |
| Drop length | 36” |
| Height adjustment | 1" increments |
| 1.5" NPT thread compatible | Yes |
| Mounting surface | wood joist, structural wood or structural concrete (accessory required HE4) |
| Joist spacing | dual joist on 16” centers |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 35.3lb (16kg) |
| Package specifications | 39”x12”x9” |
| Color | black |
| Warranty | 10-years |
