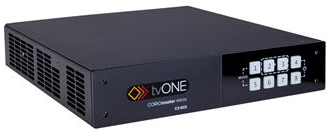

Description: C3-503 CORIOmaster micro offers a new, more efficient approach to building Video wall systems. Using tvONE’s latest CORIO®3 technology, it gives the user access to new levels of video processing power to achieve new heights of creative and dynamic video wall displays. All this is possible in one 1RU, half rack sized chassis.

Features:

·        Patented CORIO®3 Video wall processing technology

·        Manage up to 2 video walls

·        Uses CORIOgrapher v2; simple powerful software interface

·        Live dashboard to switch presets and window sources

·        4K Input & Output modules

·        Custom Resolution Editor with resolutions auto detected on inputs & selectable on the outputs

·        Streaming Media & 4K Playback Module

·        Create custom output resolutions

·        Auto discover devices on the network

·        Outputs rotated in 1º increments

·        Combination of different size and resolution of displays can be used

·        Adjustable bezel compensation

·        Multi-Edge blending of projectors

·        Universal DVI Inputs: (HDMI/DVI/CV/YC/RGB/YPbPr)

·        DVI-I Outputs: (HDMI/DVI/RGB/YPbPr)

·        NEW 4KHDBaseT Inputs

·        HDBaseT Outputs

·        SDI Inputs and Outputs:SD/HD-SDI/3G-SDI to 1080p60

·        High Resolution Inputs/Outputs: Analog: PC to 1920x1080, HDTV to 1080p/60

·        DVI: PC to 1920x1200, HDTV to 1080p/60 w/EDID

·        HDMI input & output with HDCP handling

·        Up-Down-Cross Conversion

·        Control: RS-232, IP

·        Command Line Interface – Third party control

·        AMX & Crestron modules available

·        1RU, Half Rack Frame size

·        Modularity Provides Flexible I/O
