Item # C24CT MICROPLUS
MEDIUM OUTPUT CEILING SPEAKER ASSEMBLY. COMPLETE ASSEMBLY INCLUDES BACKCAN, GRILLE AND TILE RAILS.
- MAP: $155.00 / EA
- List Price: $155.00 / EA
- Log in to see if custom discounts apply
- Minimum Order Qty: 2
- Case Qty: 2
Click image to enlarge
Item # C24CT MICROPLUS
MEDIUM OUTPUT CEILING SPEAKER ASSEMBLY. COMPLETE ASSEMBLY INCLUDES BACKCAN, GRILLE AND TILE RAILS.
- UM: EA
- Brand: JBL / HARMAN

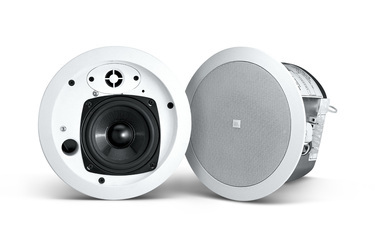

The Control 24CT MicroPlus is a compact in-ceiling loudspeaker designed for background music and paging applications. It delivers full-range sound suitable for integration into ceiling spaces.
- 150° conical coverage
- Smooth frequency response
- Advanced crossover network for even coverage
- 115 mm (4.5 in) woofer with graphite cone and butyl rubber surround
- 12 mm (0.5 in) polycarbonate tweeter for extended response
- 25 W multi-tap transformer for 70 V/100 V systems
- Shallow 105 mm (4.1 in) mounting depth
| Frequency Range | 80 Hz - 25 kHz |
|---|---|
| Power Capacity | 30 W Continuous Program Power; 15 W Continuous Pink Noise |
| Transformer Taps | 70 V: 25 W, 12 W, 6 W taps; 100 V: 25 W, 12 W taps |
| Nominal Sensitivity | 85 dB SPL @ 1 m |
| Coverage Angle | 150° conical |
| Crossover Frequency | 3.5 kHz, 3rd order low-pass plus 3rd order high-pass |
| Maximum SPL | 99 dB @ 1 m, 25 W tap |
