Item # C10AT70
8" DUAL CONE LOUDSPEAKER WITH 70.7V-5W TRANSFORMER
Item # C10AT70
8" DUAL CONE LOUDSPEAKER WITH 70.7V-5W TRANSFORMER
- UM: EA
- Estimated Weight: 18.0
- Brand: ATLAS IED

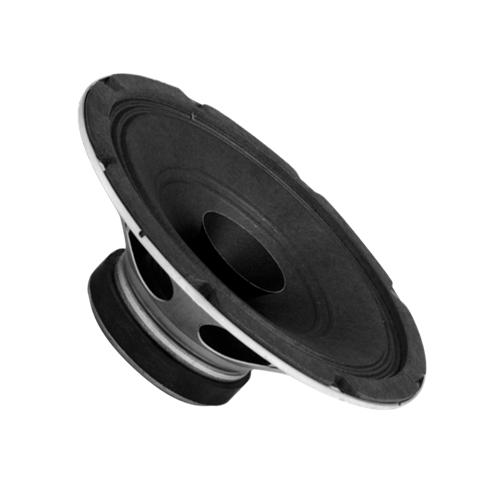

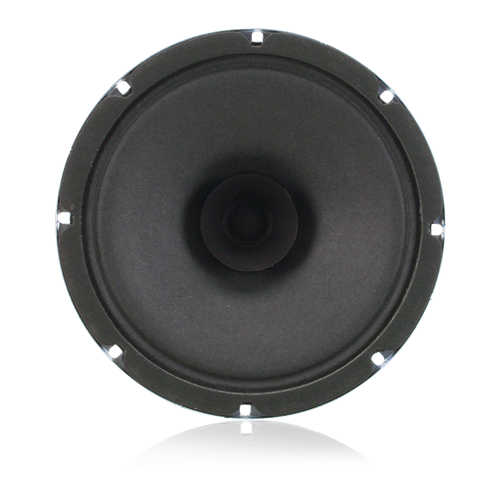

Model C10AT70 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 70V 5W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A speakers are TEF-tested at the factory.
Features:
- Acoustically Proven, General Purpose 25-Watt Loudspeaker
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Includes LT-70 Factory-Installed Line-Matching Transformer
- Mounts a Wide Selection of Atlas Sound Baffles
- Offers U.S.- Made Quality at a Realistic Price
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 100Hz - 10kHz |
| Power Taps | .5, 1, 2, & 5 Watts |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.00 lbs (1.36 kgs) |
| Warranty Period | 60 months from date of purchase |
