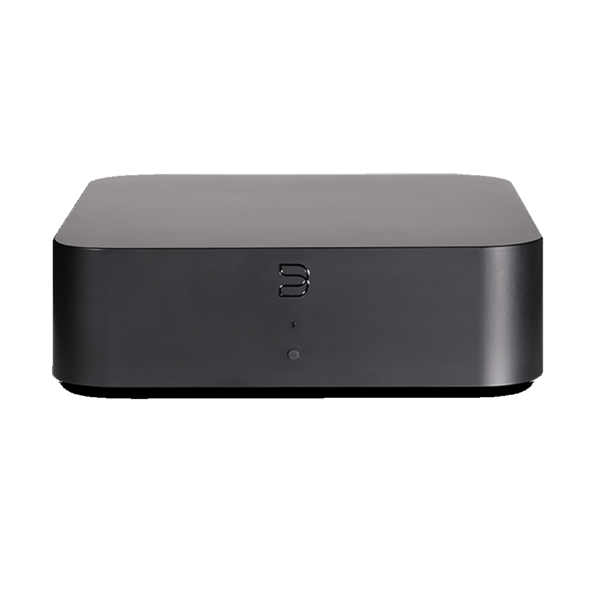

Item # BS-PRO HUB
NETWORK INPUT ACCESSORY
- UM: EA
- Estimated Weight: 6.0
- Brand: BLUESOUND PROFESSIONAL
The Bluesound Professional HUB is a versatile network accessory that allows the connection of both analog and digital audio devices to a BluOS ecosystem for networked streaming. Users can use the HUB to play audio sources like TVs and business music players in single or multiple zones of an installation without being limited by wires and physical proximity.
Features
Connect a TV to the HUB’s HDMI eARC input to share TV audio across a BluOS network
Five input options: HDMI eARC, Coaxial, Digital Optical, Stereo Analog and a moving magnet Phono stage allow for source and streaming flexibility
Play one analog and one digital stream simultaneously to any Bluesound Professional or BluOS players on the network
Connect to the network with dual-band Wi-Fi or Gigabit ethernet
Easily select the HUB as an audio source through the BluOS app
USB-C powered
|
AUDIO & OPERATING SYSTEM |
|
|
Operating System |
BluOS |
|
BluOS Controller Operating System |
iOS, Android, Windows, MacOS |
|
Control System Integrations (Via software update) |
Control4, Crestron, URC, RTI, ELAN, Lutron |
|
Simultaneous Audio Streams |
2 per HUB, 1 x analog audio input, 1 x digital audio input |
|
Maximum Number Units |
4x HUB on single network (8 simultaneous streams) |
|
Native Sampling Rates |
up to 192 kHz |
|
Bit Depth |
16-24 |
|
Signal-to-Noise Ratio |
>100 dB (Line input), >80 dB (Phono MM input) |
|
Distortion |
<0.03% 20-20 kHz -1dBFS output |
|
Frequency Response |
20-20 kHz +/-0.3dB; 50 kHz -3dB |
|

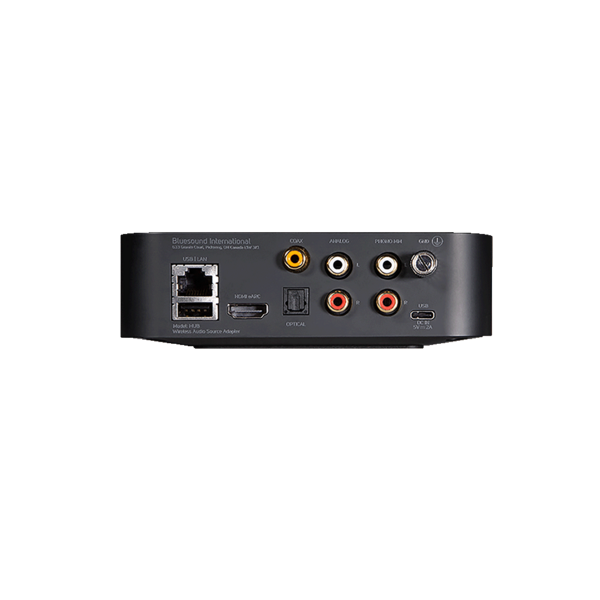

CONNECTIONS |
|
|
Power Supply |
Universal USB-C Power adapter (Input:100-240V AC/0.3A Output:5V/2A) |
|
Ethernet/LAN |
Ethernet RJ45, GigE 1000 Mbps |
|
Wi-Fi Built In |
Wi-Fi 5 (802.11ac), 2.4/5GHz |
|
Analog Line Input |
1 x Stereo RCA |
|
Phono Input |
1 x Stereo RCA (Moving Magnet) |
|
Optical Input |
1 x TOSLINK digital optical |
|
Coaxial Input |
1 x RCA (75ohm) |
|
HDMI Input |
HDMI eARC with CEC |
|
USB Input |
Type A (for BluOS firmware upgrade only) |
|
Audio Output |
Network |
|
FEATURES |
|
|
Processor |
ARM Cortex -A53, Quad-Core, 1.8GHz per core |
|
Status Indicator |
Front Panel LED |
|
Function Button |
Front Panel Function Button |
|
Power Consumption |
0.5W Network Standby |
|
GENERAL |
|
|
Finish |
Black; Matte Satin Paint |
|
Version |
CB130 |
|
Product Dimensions |
143 x 153 x 45mm (W x D x H), 5.6 x 6 x 1.8 in (W x D x H) (Non-metric measurements are approximate) |
|
Weight |
0.63kg / 1.39 lbs |
