Item # BS-CS1 BPR

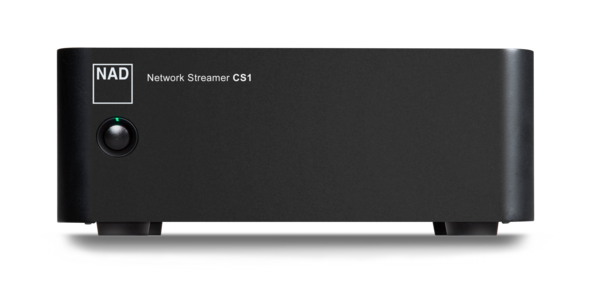

ENDPOINT STREAMER
- UM: EA
- Brand: BLUESOUND PROFESSIONAL
The CS1 Endpoint Network Streamer supports the most popular network streaming and casting protocols, including Bluetooth, Apple AirPlay 2 and Google Chromecast, so users can stream directly from devices like smartphones, tablets and computers. The CS1 can play high-resolution audio, up to 24-bit/192kHz, with MQA pass-through support for both digital outputs, enabling full decoding and rendering by a compatible external DAC for playing Master Quality Authenticated music.
Features
Bluetooth 5.0
Dual-band Wi-Fi
Gigabit Ethernet port
Stereo analog, optical digital, and coaxial digital outputs
Premium differential DAC design based on Texas Instruments PCM5141 DAC, with support for 24-bit/192kHz high-resolution audio
MQA decoding and rendering capability for high-resolution music streaming from Tidal
Support for Apple AirPlay 2 allows for streaming from any audio app on an iPhone, iPad, or Mac
Google Chromecast support allows playback at up to 24-bit/96kHz resolution from any Cast-enabled app on a smartphone, tablet, or personal computer
Spotify Connect and Tidal Connect support lets users cue up music on a smart device, then transfer playback to the CS1
DLNA support allows streaming at up to 24-bit/192kHz resolution from any DLNA-capable music app
|
AUDIO |
|
|
THD + N (20 Hz – 20 kHz) |
<0.03% 20-20 kHz -1dBFS output |
|
Signal-to-Noise ratio |
-94dB (ref 2V) |
|
Frequency response |
20-20 kHz +/-0.3dB; 50 kHz -3dB |
|
Native sampling rate |
Up to 192 kHz |
|
Bit depth |
16-24 |
|
Supported audio file format |
LPCM, MP3, AAC/AAC+, AC3, Ogg Vorbis, HE-AAC, WMA decode capability |
|
Supported 3rd party service provider |
Spotify Connect, Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon |
|
DAC |
TI PCM5254 |
|
Processor |
ARM Cortex -A53, Quad-Core, 1.5GHz per core |
|
CONNECTIONS |
|
|
Power |
AC adapter, Input: 100-240V AC 0.3A, Output: 5V DC 1A |
|
Network connectivity |
Ethernet RJ45 100 Mbps, Wi-Fi 5 (802.11ac 2.4GHz/5 GHz), DLNA/UPnp (Certification in progress) |
|
Bluetooth |
Bluetooth 5.0; BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP |
|
NFC |
NFC for easy Bluetooth connection |
|
12V Trigger Out |
3.5mm Mini-jack x 1 |
|
Analog Out |
RCA x 1 |
|
Coaxial Out |
RCA 75ohm |
|
Optical Out |
TOSLINK x 1 |
|
USB IN |
USB C for AC adapter |
|
GENERAL |
|
|
Status Indicator |
Front Panel LED |
|
Function Button |
Front Panel Function Button |
|
Power Consumption |
0.5W Network Standby |
|
Finish |
Black |
|
DIMENSION AND WEIGHT |
|
|
Gross dimensions (W x H x D) (Includes feet and other extended front and rear panel terminals) |
140 x 140 x 55 mm (5.5 x 5.5 x 2.16 in) |
|
Net weight |
1.5 kg / 3.3lbs |
|
Shipping weight |
1.7 kg/ 3.8lbs |
