Item # BS-B160S
1 ZONE NETWORK STEREO AMP
- UM: EA
- Brand: BLUESOUND PROFESSIONAL

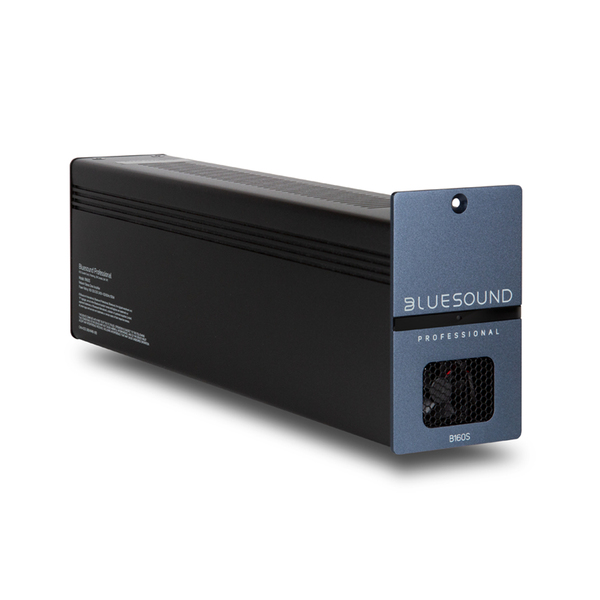

The Bluesound Professional B160S networked streaming stereo amplifier is a complete solution for a commercial music installation. The B160S combines a high-quality stereo amplifier with a BluOS enabled network music player. The B160S’s HybridDigital amplifier section provides 2 x 60W of power into 8 O – plenty for most small/medium spaces and thermostatic fan cooling provides for reliable operation in commercial environments. The amplifier technology is highly energy efficient and also has a standby mode consuming only 6W of power.

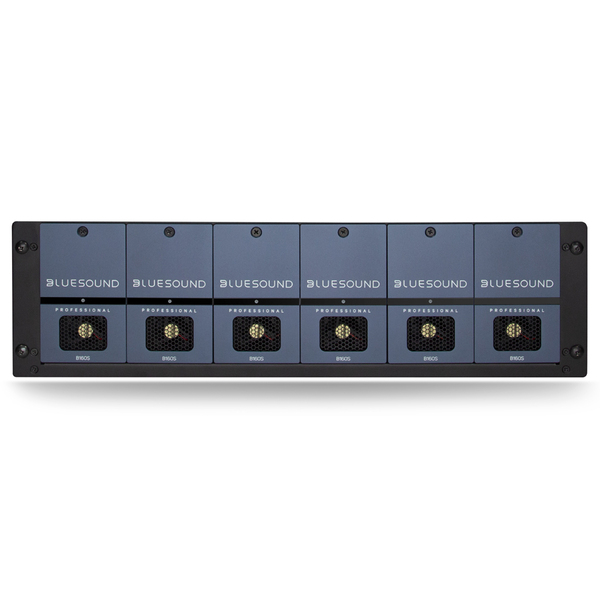

The form factor of the B160S allows it to be mounted individually vertically or horizontally on or under shelves or tables or on walls. Up to six B160S units can be mounted side-by-side in a 3U space in a rack using the optional RM160 rack mounting shelf for a compact 12-channel system with six independent or group zones.
Features
A complete stereo solution for commercial installations
Integration with local network content storage
PC/Mac, iOS/Android and third-party control
Security preventing unauthorized control
Flexible and unlimited grouping of zones within a BluOS system
Streaming via ethernet for increased reliability
USB input for replay from local connected drives
2 x 60W (8 O) HybridDigital energy-efficient amplification
6W standby mode
Flexible mounting options including mounting of 6 x BS160S in a 3U rack space using the optional RM160 rack mounting shelf
|
Supported File Formats |
MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA |
|
Supported Cloud Services |
SoundMachine, Tunify, Custom Channels, SiriusXM for Business, Spotify, Tidal, Amazon, Deezer, Qobuz, TuneIn, Tuner.com and many others |
|
Supported Operating Systems |
Microsoft Windows 7 SP1 or higher, Apple Macintosh OSX 10.7.5 or higher |
|
Free Internet Tuner |
TuneIn Tuner, iHeartTuner, Calm Tuner, Tuner Paradise, Slacker Tuner |
|
Integration Partners |
Control4, RTI, Crestron, URC, ELAN, Lutron |
|
Rated Power |
2 x 60W at 8ohm, 2 x 100W at 4ohm |
|
Rated Distortion |
=0.005% |
|
Signal-to-Noise Ratio |
-110dBA |
|
Sample Rate |
32 – 192kHz |
|
Bit Depth |
16 – 24 |
|
INPUT |
|
|
Analogue |
Phoenix |
|
USB |
Type A (for USB memory stick and supported peripherals – FAT32 formatted), Type B Mini USB (for servicing purposes only) |
|
IR Input |
3.5mm Jack |
|
OUTPUT |
|
|
Subwoofer OUT |
Phoenix |
|
Speaker OUT |
Phoenix Speaker connection block |
|
NETWORK |
|
|
Gigabit Ethernet RJ45 |
|
|
User Interface |
FREE Android and iOS App available at GooglePlay and Apple App Store |
|
GENERAL SPECIFICATIONS |
|
|
AC Power Supply |
AC Power Supply |
|
Standby Power |
6W (Network Standby Mode) |
|
Dimensions (W x H x D) |
70 x 120 x 350mm (2.81 x 4.75 x 13.81”) |
|
Net Weight |
1.6kg (3.5lb) |
|
Shipping Weight |
2.3kg (5.1lb) |
|
RM 160 RACK MOUNT ACCESSORY |
|
|
Dimensions (W x H x D) |
480 x 135 x 460mm (18.9 x 2.3 x 18.1”) |
|
Weight |
4.28kg (9.45lb) |
