Item # BPA60
POWER AMPLIFIER 60 W - 60 W HI-Z / 8-OHM/25V, 16-OHM, 25VCT, & 70V OUTPUTS *LOW Z REQUIRES XFMR*
Item # BPA60
POWER AMPLIFIER 60 W - 60 W HI-Z / 8-OHM/25V, 16-OHM, 25VCT, & 70V OUTPUTS *LOW Z REQUIRES XFMR*
- UM: EA
- Estimated Weight: 19.0
- Brand: BOGEN

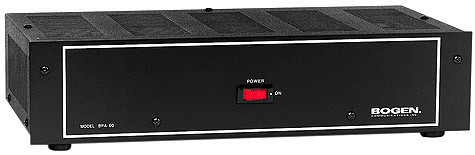

The BPA60 from Bogen is a 60 Watt 70V Solid-State Power Amplifier that is designed to fulfill the power amplification requirements of Paging and Commercial Sound Systems. The power amplifier supplies 60 watts RMS output. Total harmonic distortion is less than 2% at rated output from 50Hz to 15 kHz.
The BPA60 amplifier may be driven from an amplifier that provides a 25- or 70-volt output (with WMT1A accessory). Output impedances for the BPA60 are: 8-ohm/25V, 16-ohm, 25VCT and 70V. Output regulation is better than 2dB from no load to full load.
The BPA60 amplifier is thermally protected to prevent damage due to excessive temperatures. Additional protection is provided by transient protection diodes and an electrical circuit breaker. An illuminated on/off power switch is located on the front panel. An input level control, circuit breaker reset, lo-cut filter switch, and auxiliary receptacle are located on the rear panel. A rack panel kit (RPK53) is available for mounting the amplifier in a 19-inch equipment rack.
FEATURES
- 60 watts rated power
- Distortion less than 2% THD
- Transient protection diodes
- Frequency response -2dB from 20Hz to 20kHz
- Multiple output voltages/impedances available
- Resettable circuit breaker; thermally protected
