Item # BIA-100
BI-AXIAL HORN, GIMBAL-MOUNT, TWIN REFLEX AIR COLUMN ** REQUIRES DRIVER / SOLD SEPARATELY **
Click image to enlarge
Item # BIA-100
BI-AXIAL HORN, GIMBAL-MOUNT, TWIN REFLEX AIR COLUMN ** REQUIRES DRIVER / SOLD SEPARATELY **
- UM: EA
- Estimated Weight: 15.0
- Brand: ATLAS IED

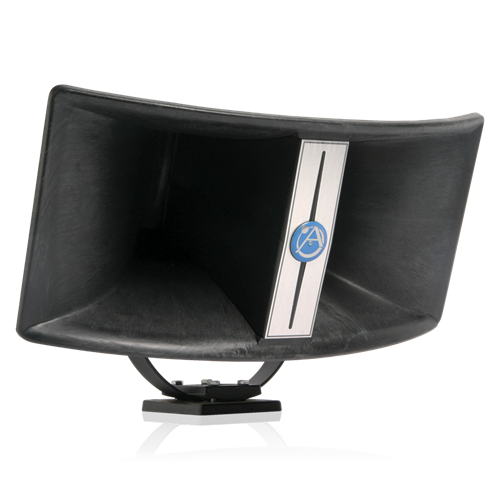

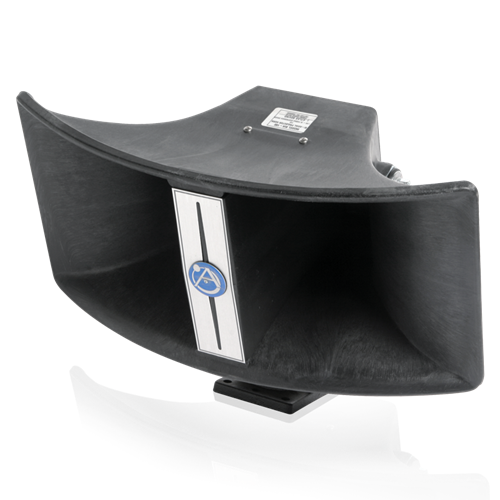

The AtlasIED BIA-100 is a bi-axial horn loudspeaker featuring a twin air column design with an exponential bell, providing wide-angle sound coverage of 130° horizontally and 60° vertically. This design ensures high-efficiency sound dispersion with a nominal frequency response of 350Hz to 8kHz, making it ideal for high-intelligibility voice, signaling, and full-range music applications in both indoor and outdoor settings. The BIA-100 is compatible with AtlasIED PD Series compression drivers and other models with 1 3/8" - 18 male threads and 0.707" diameter throat openings. Its weather-resistant, non-glare matte black foam construction and patented 180° gimbal-mount bracket allow for flexible installation and precise directional positioning, making it suitable for environments such as theme parks, sports centers, mass transit terminals, and industrial facilities.
Features:
- Accepts All Atlas Sound and 1 3/8" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.
- High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage
- Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications
- Patented 180° Gimbal-Mount for Installation Flexibility
| Dispersion | 130° x 60° |
|---|---|
| Height | 10 1/4" (26.035 cm) |
| Width | 21" (53.34 cm) |
| Depth | 19 1/4" (48.895 cm) |
| Shipping Weight | 16.00 lbs (7.26 kgs) |
| Warranty Period | 60 months from date of purchase |
