Item # BG-235 CU

3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V

  • MAP: $289.00 / EA
  • List Price: $357.00 / EA
  • Log in to see if custom discounts apply
  • Case Qty: 2
    BG-235 CU 3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V
    BG-235 CU 3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V
    Click image to enlarge
    BG-235 CU 3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V
    BG-235 CU 3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V

    Item # BG-235 CU

    3-INPUT 35W MIXER AMPLIFIER, MOH OUTPUT, AUTO MUTE / SPEAKER OUTPUT 4OHM, 25V, OR 70V

    • UM: EA
    • Estimated Weight: 10.0
    • Brand: TOA ELECTRONICS

    The TOA BG-235 is a high-quality mixer amplifier engineered for background music and paging applications in commercial audio systems. Delivering 35 watts of output power, the BG-235 features a 5-channel mixer section with both balanced mic/line inputs, as well as unbalanced RCA line inputs.  It supports both 70V and 25V distributed speaker systems, as well as low-impedance 4-ohm outputs, offering flexibility across various installations. Ideal for offices, retail spaces, restaurants, and educational facilities, the BG-235 includes bass and treble controls, phantom power on mic inputs, and output short protection for dependable performance. Housed in a compact 1U chassis, this TOA amplifier is perfect for AV integrators needing a reliable, easy-to-use solution for small- to medium-sized sound reinforcement systems.

    Power Source

    120 V AC, 60 Hz

    Rated Output

    35 W

    Power Consumption

    90 W (rated output), 55 W (based on cULus standards)

    Frequency Response

    50 Hz - 20 kHz

    Total Harmonic Distortion

    0.5 % or less, at 1 kHz, rated output

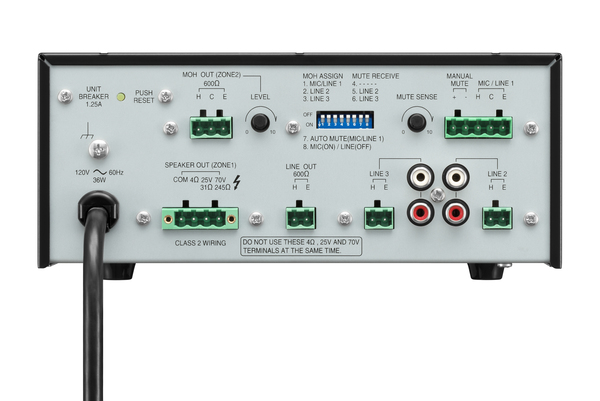

    Input

    Mic: -60 dB*/ Line 1: -10 dB*
    Mic/Line 1 selectable, 600 O, electronically balanced, removable terminal block
    Line 2, 3: -10 dB*, 10 kO, unbalanced, removable terminal block or RCA jack

    Output

    Speaker: 4 Ohm, 25V (18 O) and 70V (140 O),
    balanced, removable terminal block
    MOH: 0 dB*, 600 O, balanced, removable terminal block
    Line: 0 dB*, 600 O, unbalanced, removable terminal block

    Output Regulation

    2 dB or less, no load to full load (1 kHz)

    S/N Regulation

    Mic/Line 1: 60 dB or more, Line 2, 3: 80 dB or more
    (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered)

    Muting

    Manual mute/Automatic mute

    Tone Control

    Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz

    Control

    Mic/Line 1 gain control, Line 2 gain control, Line 3 gain control,
    Bass tone control, Treble tone control, MOH out gain control,
    Mute control (Manual mute), Mute sense control, Auto mute switch (Mic/Line 1)
    Mic/Line 1 selector switch, Mute receive switch (Line 2, 3),
    MOH assign switch (Mic/Line 1, Line 2, 3), Power ON/OFF switch

    Indicator

    Power LED, Signal LED, Peak LED

    Operating temperature

    0  °C to +35  °C (32  °F to 95  °F)

    Operating Humidity

    35 % to 80 %RH (no condensation)

    Finish

    Panel: ABS resin, black
    Case: Steel plate, black, paint

    Dimensions

    210 (W) × 94.3 (H) × 265 (D) mm (8.27" × 3.71" × 10.43")

    Weight

    4 kg (8.82 lb)

    Accessory

    Volume control cover: YA-920 ……3
    Removable teminal plug (2 pins) ……3, Removable teminal plug (3 pins) ……1
    Removable teminal plug (4 pins) ……1, Removable teminal plug (5 pins) ……1

    Option

    Rack mounting bracket: MB-25B-BK, MB-25B-J
