Item # BDT30A
BIDIRECT HORN W/XFRM 30 WATT
Item # BDT30A
BIDIRECT HORN W/XFRM 30 WATT
- UM: EA
- Estimated Weight: 8.0
- Brand: BOGEN

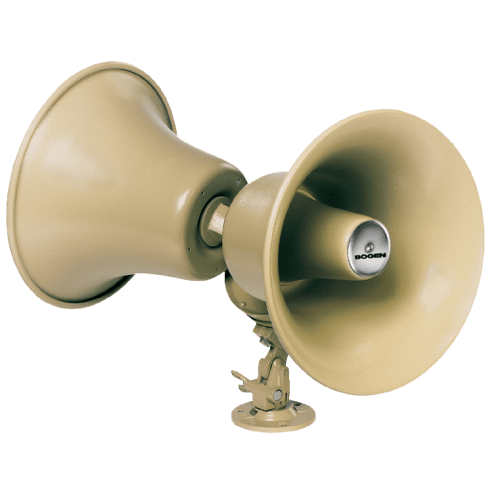

The BDT30A is a dual loudspeaker system, with twin re-entrant horns for bi-directional projection, designed for one- or two-way sound and communication systems. Ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas (speaker assembly required).
Features
Twin re-entrant horns for bi-directional projection
Maximum speaker power capacity of 30W
Variable tap impedance selector switch
Tilt & swivel base for easy aiming
All metal construction with enamel finish
Weatherproof design
|
Power Rating (RMS) |
30 watts continuous; 40 watts equalized |
|
Frequency Response |
225 Hz to 14 kHz |
|
Impedance |
25/70 volts |
|
Sound Pressure Level |
121 dB @ four feet on axis with 30 watt input @ 1000 Hz, each horn |
|
Dispersion |
100º each horn |
|
Sensitivity as Microphone |
-22 dBm [Ref: 10 dynes/cm2] |
|
Dimensions |
9-5/8" Diameter (each horn) x 12-1/8" D |
|
Product Weight |
7 lb. |
|
Finish |
Textured mocha enamel |
|
Impedance Selector Switch Settings |
25V @ 15, 7.5, 3.7, 1.8 watts, 70V @ 30, 15, 7.5, 3.7, 1.8 watts |
