Item # BC3-8-0
BEAM CLAMP, 3-8", 1 TON W/1/2", NO EYE
Click image to enlarge
Item # BC3-8-0
BEAM CLAMP, 3-8", 1 TON W/1/2", NO EYE
- UM: EA
- Estimated Weight: 7.0
- Brand: ADAPTIVE TECHNOLOGIES

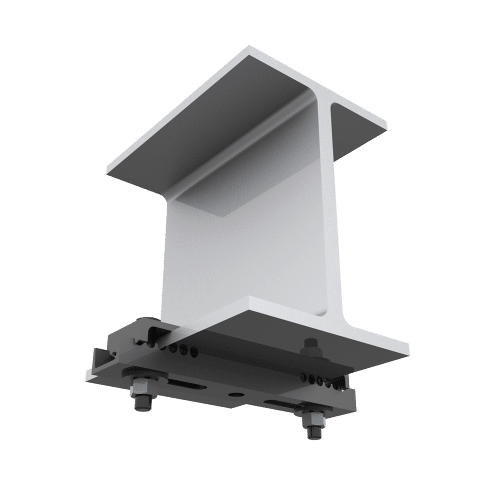

Use the BC3-8 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features
Single center hang points for 1/2" to 5/8" dia. threaded rod.
Provides safe load-rated hang points
Clamps securely to beam flanges ranging from 3" – 8"
|
Material |
All Steel Components |
|
Width |
(BC20-26-2) 20” to 26” |
|
WLL |
2100 lbs / 953 Kg. |
|
Finish |
Powder Coat |
|
Color |
Black |
|
Design Factor |
5:1 |
|
Shipping Weight |
3.2 lbs / 1.45 Kg. |
×
