Item # BC12-17-0
BEAM CLAMP, 12"-17", 1 TON, NO EYE

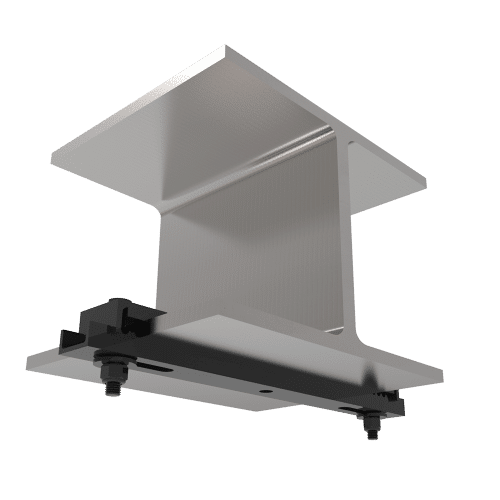

Click image to enlarge
Item # BC12-17-0
BEAM CLAMP, 12"-17", 1 TON, NO EYE
- UM: EA
- Estimated Weight: 9.6
- Brand: ADAPTIVE TECHNOLOGIES
Provides a load rated overhead rigging point from structural I-Beams with flange widths ranging between 12” and 17” (304-431mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features
Single center hang points for 1/2" to 5/8" dia. threaded rod.
Provides safe load-rated hang points
Clamps securely to beam flanges ranging from 12" – 17"
|
Material |
All Steel Components |
|
Width |
12” to 17” |
|
WLL |
980 lbs / 445 Kg. |
|
Finish |
Powder Coat |
|
Color |
Black |
|
Design Factor |
5:1 |
|
Shipping Weight |
7.29 lb / 3.3 Kg |
×
