Item # BC-W7-12-6
WOOD BEAM SUSPENSION WITH SWIVEL EYE FOR BEAM DEPTHS OF 6” OR MORE & WIDTHS FROM 7-12" WIDE/ BLACK
Item # BC-W7-12-6
WOOD BEAM SUSPENSION WITH SWIVEL EYE FOR BEAM DEPTHS OF 6” OR MORE & WIDTHS FROM 7-12" WIDE/ BLACK
- UM: EA
- Estimated Weight: 14.0
- Brand: ADAPTIVE TECHNOLOGIES

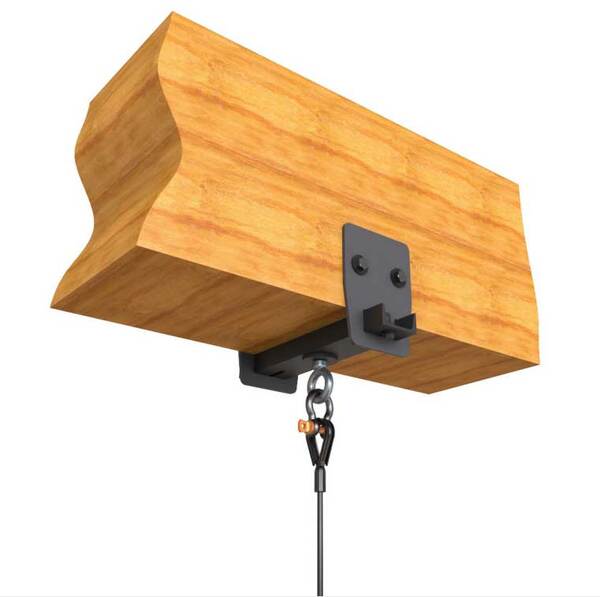

The BC-W7-12-6 provides a safe and secure overhead rigging point from underneath regular structural wood and Glulam overhead beams. This rugged, all-steel three-piece design will accommodate beam depths of 6” (155 mm) or more and widths from 7 inches wide to 12 inches wide (180-300 mm).
Its hang point eye is secured to a loading channel which is oriented underneath and in the center of the wood beam and swivels in the direction of the pull to minimize the side loading when a load is not vertical and splayed out from center.
Two side plates anchor into the wood beam via lag bolts or through bolts, depending upon the application. If not certain, check with a structural engineer for the best method of attachment.
The two side plates support the load channel below, which slides through both side plates and lock in permanently via two angle tabs.
The beam clamp components are powder coated in black.
Features
Load-rated suspension point
Swiveling hang point
Powder Coat finish
Easy permanent installation
|
Material |
Structural steel |
|
|
Finish |
Powder Coat |
|
|
Color |
Black |
|
|
Weight |
14 lb/ 6.4 Kg |
|
|
WLL |
WLL: 980 lb at 0 degrees |
WLL: 380 lb at 45 degrees |
|
Design Factor |
5:1 |
|
