Item # BC-2824-12

BEAM CLAMP, 12" OFFSET 1/2" ROD

  • MAP: $148 / EA
  • List Price: $185.00 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply

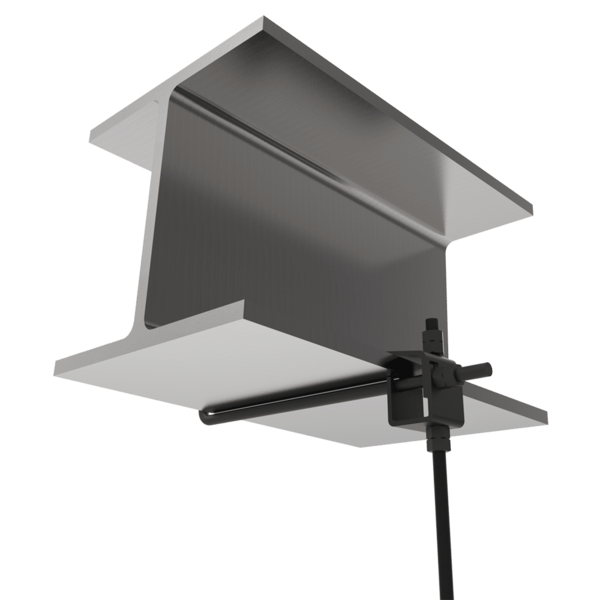

BC-2824-12 BEAM CLAMP,  12" OFFSET 1/2" ROD
Click image to enlarge
BC-2824-12 BEAM CLAMP,  12" OFFSET 1/2" ROD

Item # BC-2824-12

BEAM CLAMP, 12" OFFSET 1/2" ROD

  • UM : EA
  • Estimated Weight: 3.0
  • Brand: ADAPTIVE TECHNOLOGIES

This hook style beam clamp is adjustable and mounts flush underneath the building’s I-Beam’s flange. Use the BC-2824-12 hook style beam clamp to provide a load rated overhead rigging point from structural I-Beams with widths ranging between 9” and 12”.

This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor.

Features

  • For beams with width between 9” and 12”

  • Accommodates ½ – 13 threaded rod.

  • For overhead vertical suspension applications.

Material

Structural Steel Grade B7 Threaded Rod

Finish

Bright Zinc

Color

Silver

Design Factor

7:1

WLL

178.5 lbs / 81.1 Kg

Shipping Weight

1.9 lbs / .78kg
