Item # AWC62
COMPACT ALL-WEATHER 2-WAY CO-AXIAL LOUDSPEAKER WITH 6.5" LF, LIGHT GRAY
Click image to enlarge
Item # AWC62
COMPACT ALL-WEATHER 2-WAY CO-AXIAL LOUDSPEAKER WITH 6.5" LF, LIGHT GRAY
- UM: EA
- Estimated Weight: 20.0
- Brand: JBL / HARMAN

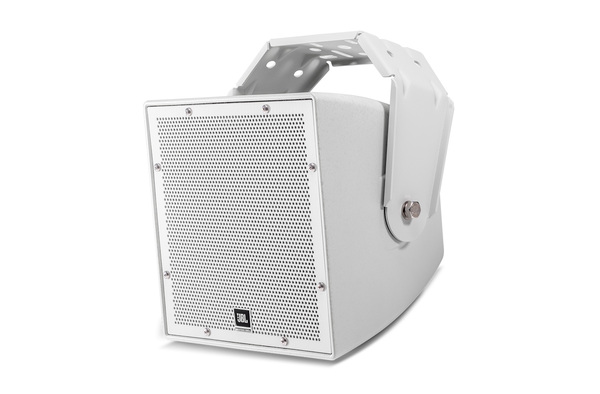

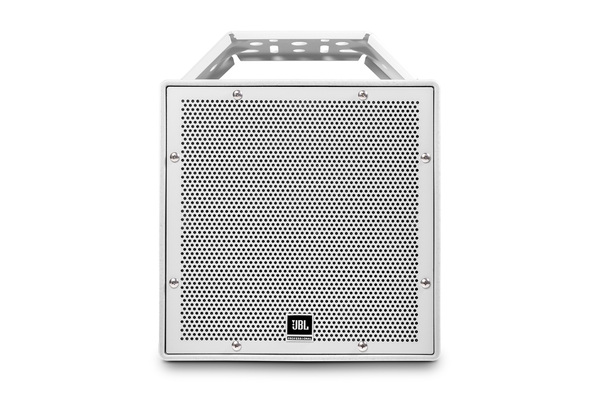

The AWC62 is a compact, two-way coaxial loudspeaker featuring a 6.5-inch low-frequency driver. It is designed as a full-range system with high weather resistance suitable for both indoor and outdoor applications. The enclosure and components provide durability against environmental conditions for reliable performance in various settings.
Features:
- Weather-resistant IP56 rating
- 110° x 110° broadband pattern control
- 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil
- 25 mm (1 in) exit compression driver
- High-slope crossover network for constant coverage and smooth midrange
- 175W power handling (average continuous pink noise) with high sensitivity
- High-power passive crossover network
- Overload protection
- 70 Hz – 18 kHz frequency response

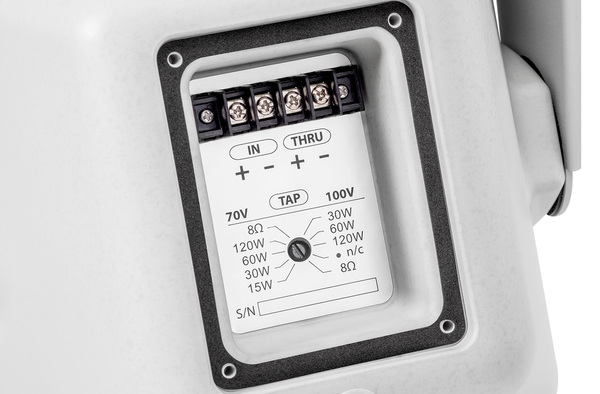

- 120W 70V/100V multi-tap transformer or direct 8Ω low-impedance
| Frequency Range | 70 Hz – 18 kHz |
|---|---|
| Frequency Response | 100 Hz – 16 kHz |
| Coverage Pattern | 110º x 110º |
| Directivity Factor (Q) | 7.2 (1 k – 16 kHz) |
| Directivity Index (DI) | 7.9 dB (1 k – 16 kHz) |
| System Power Rating | 175 W (2 hrs), 120 W (100 hrs) IEC rated |
| Sensitivity | 92 dB (2.83V @ 1m, 100 Hz – 18 kHz) |
| Maximum SPL | 114 dB direct (peaks 120 dB), 112 dB at 120 W tap |
| Crossover Network | 1.8 kHz, 3rd order high-pass plus conjugate to HF, 3rd order low-pass to LF |
| Nominal Impedance | 8ohms |
