Item # ATW-T210CI
2000 SERIES BODY-PACK TRANSMITTER, 487.125- 506.500 MHZ (TV 16-20)
Click image to enlarge
Item # ATW-T210CI
2000 SERIES BODY-PACK TRANSMITTER, 487.125- 506.500 MHZ (TV 16-20)
- UM: EA
- Estimated Weight: 1.0
- Brand: AUDIO-TECHNICA

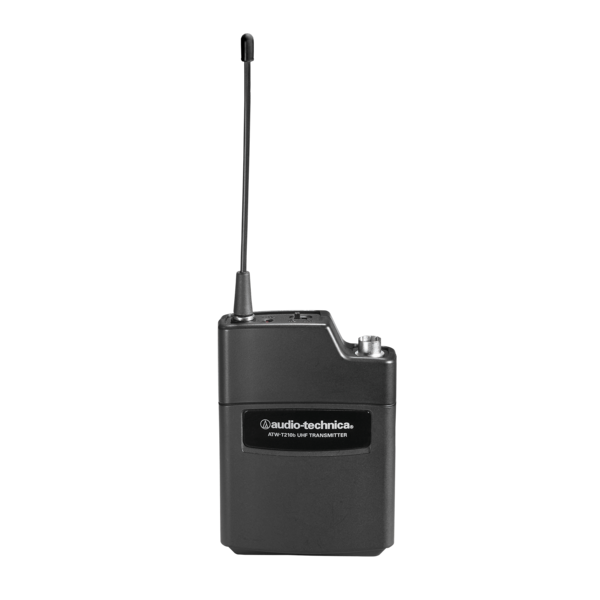

Body-pack transmitter for use with 2000 Series wireless systems.
|
Belt Pack |
|
|
RF Power Output |
High 30 mW, Low 10 mW, nominal |
|
Battery Life |
Approximately 9 hours (low), 7 hours (high) |
|
Battery Type |
2 x 1.5V AA Alkaline or rechargeable AA NiMH (not included) |
|
Current Consumption |
150 mA typical |
|
Dimensions |
66 mm x 92.3 mm x 22.5 mm (W x H x D) |
|
Input Connections |
Four-pin locking connector, Pin 1: GND, Pin 2: INST INPUT, PIN 3: MIC INPUT, PIN 4: DC BIAS +9V |
|
Net Weight |
80 g |
|
Spurious Emissions |
According to National Regulations |
×
