Item # ATW-R1440

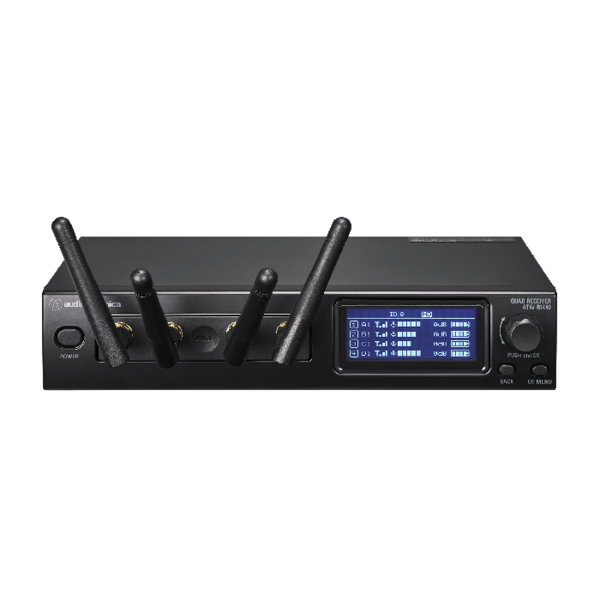

SYSTEM 20 PRO RECEIVER 2.4 GHZ
Click image to enlarge
Item # ATW-R1440
SYSTEM 20 PRO RECEIVER 2.4 GHZ
- UM: EA
- Estimated Weight: 5.0
- Brand: AUDIO-TECHNICA
System 20 PRO 4-channel receiver.
Features:
- Half-rack chassis capable of receiving up to four transmitters
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Switch between Standard (10 channels) and HD (20 channels) modes
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
- Auto-lock function prevents unintended operations
| Operating Frequencies | 2,402~2,480MHz |
|---|---|
| Dynamic Range | 120dB (A-weighted), typical |
| Total Harmonic Distortion | < 0.05%, typical |
| Maximum Simultaneous Use (recommended) | Standard: 10 channels HD mode: 20 channels It depends on the region and environment. |
| System Frequency Response | 20 to 20,000Hz Varies depending on the microphone to be installed. |
| Delay | Standard: 2.8ms HD mode: 6.7ms |
| Audio Sampling Rate | Standard: 24bit/48kHz HD mode: 24bit/48kHz |
| Encryption Method | AES128 |
×
