Item # ATW-R1100
SYSTEM 10 RECEIVER, 2.4 GHZ
Item # ATW-R1100
SYSTEM 10 RECEIVER, 2.4 GHZ
- UM: EA
- Estimated Weight: 2.0
- Brand: AUDIO-TECHNICA

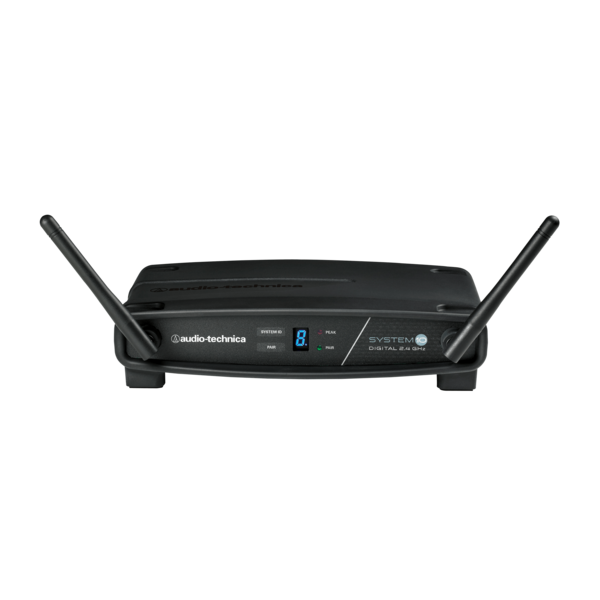

Stackable single-channel receiver for System 10 wireless.
Features
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance
Balanced XLR and unbalanced 1/4” output jacks with level control
|
Overall System |
|
|
Operating Frequencies |
2.4 GHz ISM band (2400 to 2483.5 MHz) |
|
Frequency Response |
20 Hz to 20 kHz Depending on microphone type |
|
Operating Range |
30 m (100') typical, Open range environment with no interfering signals |
|
Total Harmonic Distortion |
<0.05% typical |
|
Operating Temperature Range |
0° C to +40° C (32° F to 104° F), Battery performance may be reduced at very low temperatures |
|
Receiver |
|
|
Receiving System |
Diversity (frequency/time/space) |
|
Maximum Output Level |
XLR, balanced:0 dBV, 1/4" (6.3 mm), unbalanced: +6 dBV |
|
Power Supply |
100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
|
Operating Temperature Range |
40° F (4° C) to 110° F (43° C) |
|
Dimensions |
190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D |
|
Weight |
290 grams (10.2 oz) |
|
Accessories Included |
Power supply |
