Item # ATW-902A

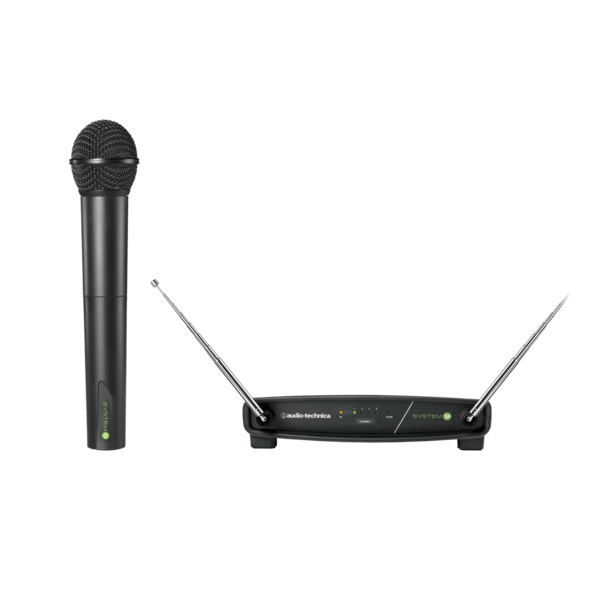

ATW-R900A RECEIVER AND ATW-T902A HANDHELD DYNAMIC UNIDIRECTIONAL MICROPHONE/TRANSMITTER.
Item # ATW-902A
ATW-R900A RECEIVER AND ATW-T902A HANDHELD DYNAMIC UNIDIRECTIONAL MICROPHONE/TRANSMITTER.
- UM: EA
- Estimated Weight: 3.0
- Brand: AUDIO-TECHNICA
ATW-R900a receiver and ATW-T902a handheld dynamic unidirectional microphone/transmitter. Includes AT8456a Quiet-Flex stand clamp.
Features
Easy operation and clear, natural sound quality
4 selectable frequency-coordinated VHF channels
Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
|
Handheld Transmitter |
|
|
RF Power Output |
10 mW |
|
Spurious Emissions |
Following federal and national regulations |
|
Battery Type |
Two 1.5V AA, not included |
|
Battery Life |
8 hours (alkaline) Depending on battery type and use pattern |
|
Dimensions |
9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter |
|
Net Weight |
9.2 oz (260 grams) without batteries |
|
Accessories Included |
AT8456a Quiet-Flex stand clamp |
|
Body Pack |
|
|
RF Power Output |
10 mW |
|
Battery Life |
8 hours (alkaline), Depending on battery type and use pattern |
|
Battery Type |
Two 1.5V AA, not included |
|
Dimensions |
2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D |
|
Input Connections |
Four-pin Locking Connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
|
Net Weight |
2.8 oz (80.0 grams) without batteries |
|
Spurious Emissions |
Following federal and national regulations |
|
Receiver |
|
|
Receiving System |
Non-diversity, single-channel, dual antenna system |
|
Image Rejection |
50 dB minimum |
|
RF Sensitivity |
20 dBuV at 60 dB S/N ratio (50 ohms termination) |
|
Power Supply |
100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply |
|
Operating Temperature Range |
40° F (4° C) to 110° F (43° C) |
|
Dimensions |
7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D |
|
Weight |
12.0 oz (337 grams) |
|
Accessories Included |
Power supply |
|
Audio Output |
Nominal Output Level, XLR, balanced:350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) |
