Item # AT10-PA
DELUXE PRIORITY, PLATE MOUNTED 10W ATTENUATOR W/PRIORITY RELAY, 3DB STEPS
Click image to enlarge
Item # AT10-PA
DELUXE PRIORITY, PLATE MOUNTED 10W ATTENUATOR W/PRIORITY RELAY, 3DB STEPS
- UM: EA
- Estimated Weight: 0.8
- Brand: ATLAS IED

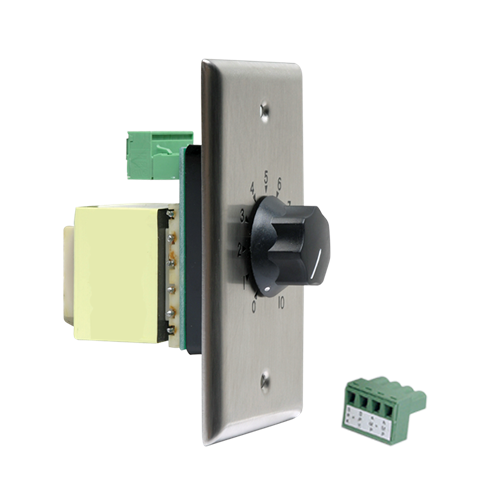

Priority paging feature by-passes the volume control dial setting to provide full program level to the speakers. Option is available on all AT attenuators. The SPDT relay is operated with 24 VDC at 10mA. Includes protective relay cover to insure lasting trouble-free performance. Terminations to the relay and volume control are made via a removable terminal block. (All other specifications except for dimensions are the same as selected AT models.
Features:
- Mount into Most 1-Gang E.O. Boxes
- Priority Feature Compatible with Atlas AA120M Amplifiers
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA

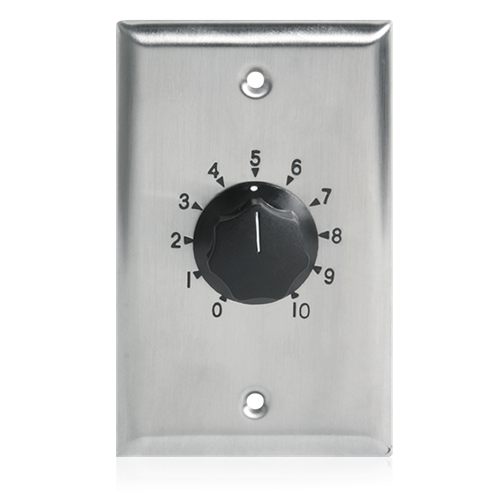

- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 10W |
| Total Attenuation | 33 dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.00 lb (0.45 kgs) |
| Safety Listed | 813, 2043 |
| Warranty Period | 60 months from date of purchase |
