ASB7118-WH | ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,
Item # ASB7118-WH
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,
Click image to enlarge

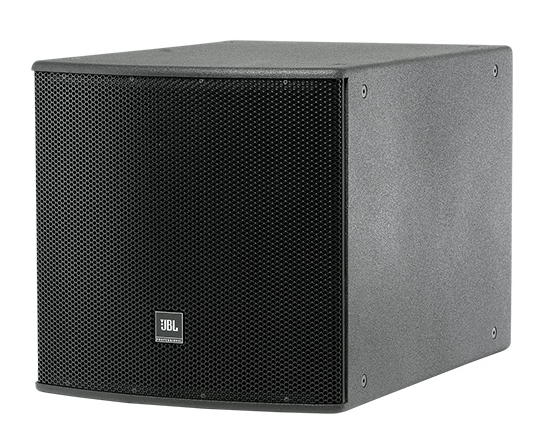

The ASB7118-WH is an 18-inch front-loaded vented subwoofer enclosure that incorporates the JBL 2269H Ultra Long Excursion Differential Drive woofer. The woofer features a neodymium magnet, dual voice coils, and dual gaps, along with Vented Gap Cooling™ technology. It is constructed with a composite cone designed for high excursion and durability.
Features:
- 18" Differential Drive® dual voice coil dual gap
- Neodymium magnet transducer
- 2000 watts continuous pink noise power
- 8000 watts peak power handling
- Ultra Long Excursion
- Large vent area for high output and low distortion
- FIR Tuning matches phase profile to full-range models
- Suitable for ground-stacked applications
- Suitable for suspended applications
| Frequency Range | 22 Hz - 1 kHz |
|---|---|
| Frequency Response | 34 Hz - 1 kHz |
| Transducer Power Rating (AES) | 2000 W, 2 hrs |
| System Power Rating | 1200 W, 100 hrs |
| Maximum SPL (1m) | 129 dB continuous average, 135 dB peak |
| System Sensitivity | 96 dB-SPL, 1W @ 1m |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x 2269H, 18 in dia., 4 in Dual Coil Dual Gap neodymium Differential Drive VGC driver |
| Enclosure | Rectangular cabinet, 11-ply birch plywood |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
