Item # AS62DC

LIGHTRONICS PORTABLE DIMMER - 6 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128

  • MAP: $693.75 / EA
  • List Price: $925.00 / EA
  • Log in to see if custom discounts apply
    AS62DC LIGHTRONICS PORTABLE DIMMER - 6 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128
    Click image to enlarge
    AS62DC LIGHTRONICS PORTABLE DIMMER - 6 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128

    Item # AS62DC

    LIGHTRONICS PORTABLE DIMMER - 6 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128

    • UM: EA
    • Estimated Weight: 11.1
    • Brand: LIGHTRONICS

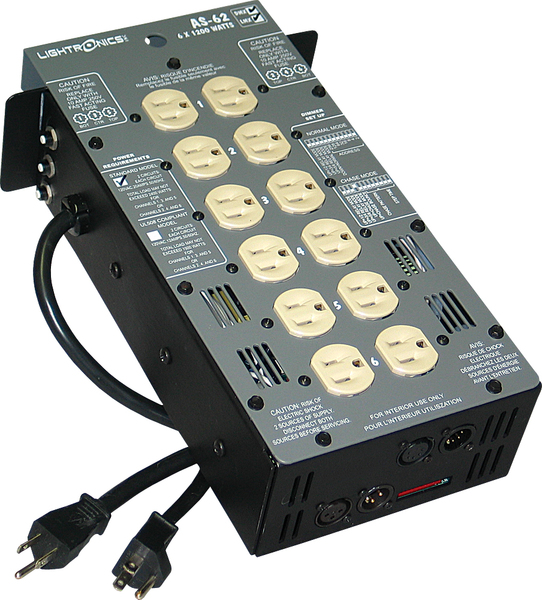

    Description: The AS62DC is a compact 6 channel light dimmer with Circuit Breakers. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS62D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.



    Features:

    ·        6 Channels

    ·        1200W per Channel

    ·        4800 Watts Total Capacity

    ·        8 Built in Chases

    ·        DMX-512 & LMX-128

    ·        Relay Mode Switchable

    ·        Circuit Breakers

    ·        Edison Outputs

    ·        120V
