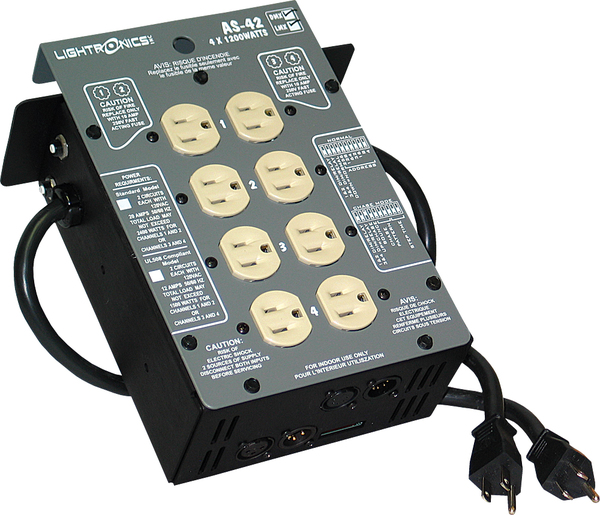

Description: The AS42DC is a compact portable 4 channel light dimmer with Circuit Breakers. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.

Features:

·        4 Channels

·        1200W per Channel

·        8 Built in Chases

·        DMX-512 & LMX-128

·        Relay Mode Switchable

·        Circuit Breakers

·        Edison Outputs

·        120V
