Item # AS42D

4 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128,

  • MAP: $450 / EA
  • List Price: $600.00 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply
AS42D 4 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128,
Click image to enlarge
AS42D 4 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128,

Item # AS42D

4 CH, 1200W PER CHANNEL, 8 BUILT IN CHASES, DMX-512 (5 PIN) & LMX-128,

  • UM : EA
  • Estimated Weight: 7.0
  • Brand: LIGHTRONICS

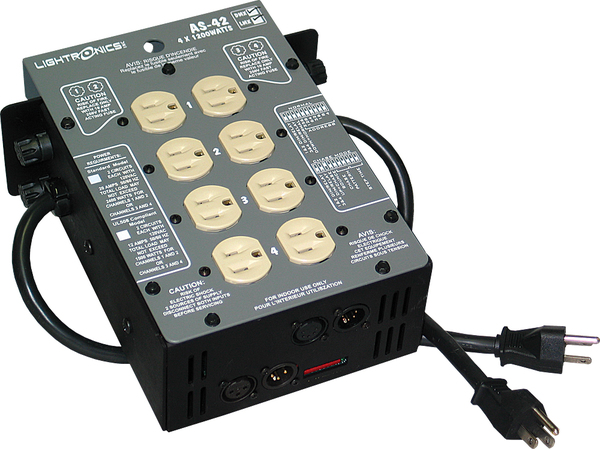

Description: The AS42D is a compact portable 4 channel light dimmer. It has a maximum capacity of 1200 Watts per channel and maximum total load capacity of 4800 Watts. It is supplied with 2 input power cord stubs which may be connected to 2 different 120 VAC power phases. The unit operates using the USITT DMX-512 protocol or an industry standard three wire multiplex protocol. The AS42D may be operated in a relay (non-dim) mode. The unit will also function as a chaser and has several preset chase patterns which may be used.



Features:

·        4 Channels

·        1200W per Channel

·        8 Built in Chases

·        DMX-512 & LMX-128

·        Relay Mode Switchable

·        Fuses

·        Edison Outputs

·        120V
