Item # AP-7230-20S

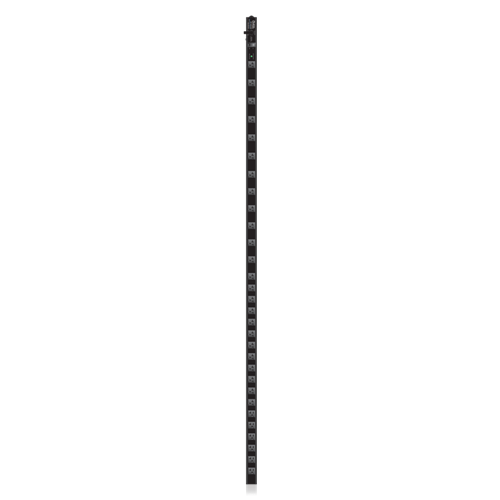

20A - 72", 30 OUTLET VERTICAL POWER STRIP
Click image to enlarge
Item # AP-7230-20S
20A - 72", 30 OUTLET VERTICAL POWER STRIP
- UM: EA
- Estimated Weight: 46.5
- Brand: ATLAS IED
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-7230-20S is 72" rack mountable and features 20A, 2500W power capability.
Features:
- 30 Available 20A Outlets
- Slimline Designs, 1.62"W x 1.25"D
- Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
- Lighted Main Power Switch
- Circuit Breaker Protection
- Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
- Also Available in 48", 20 Outlet (AP-4820-20S) and 24", 10 Outlet (AP-2410-20S) Models
| Outlets | NEMA 5-20R, Qty. 30 |
|---|---|
| Power Cord | 9'' (2.74m), 12-gauge, AC Plug NEMA 5-20P |
| Load Rating | 2500W |
| MAX Current Protection | 20A AC Mains Breaker |
| Voltage Protection Rating | L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs |
| Energy Rating | 450 Joules, 8/20µs |
| Power Consumption | .5W |
| Height | 1.25" (31.75mm) |
| Length | 72" (1828.8mm) |
| Width | 1.62" (41.10mm) |
| Weight | 5.1 lbs (2.32kg) |
| Warranty Period | 12 months from date of purchase |
×
