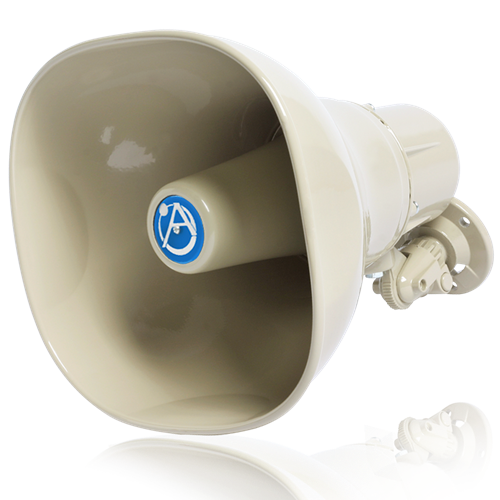

Item # AP-15TC
HORN LOUDSPEAKER WITH 15W 25V/70V/100V TRANSFORMER - BEIGE
Item # AP-15TC
HORN LOUDSPEAKER WITH 15W 25V/70V/100V TRANSFORMER - BEIGE
- UM: EA
- Estimated Weight: 4.8
- Brand: ATLAS IED
The 8-ohm Model AP-15 is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.
AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in beige epoxy.
Features:
- White Finish
- Environment Resistant for Outdoor and Indoor Use
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
- World Recognized for Quality and Dependability
| Frequency Response | 400Hz - 14kHz |
|---|---|
| Sensitivity | 106dB |
| Power Taps | 1, 2, 3.8, 7.5, 15 @ 70.7V |
| Dispersion | 70° |
| Operating Temperature Range | -40 to 70C |
| Height | 8 3/4" (22.23 cm) |
| Width | 7 7/8" (20.00 cm) |
| Depth | 9 5/16" (23.66 cm) |
| Shipping Weight | 5.00 lbs (2.27 kgs) |
| Operating Temperature Range | -40C to 70C |
| Warranty Period | 60 months from date of purchase |
