Item # AM7215/66-WRX
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
Item # AM7215/66-WRX
HIGH POWER 15” 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM WITH JBL DIFFERENTIAL DRIVE 75MM (3-IN) DUAL
- UM: EA
- Estimated Weight: 67.0
- Brand: JBL / HARMAN

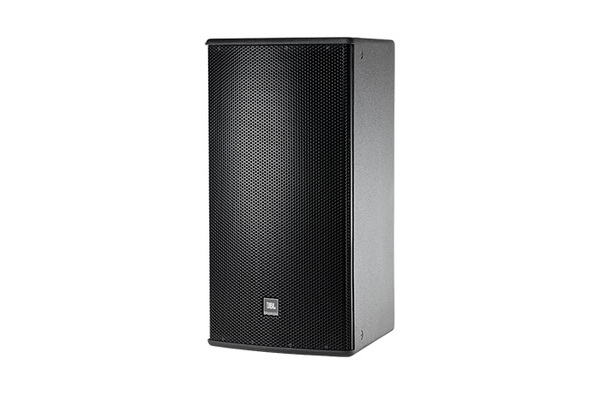

AM7215/66-WRX is a 15-inch, 2-way full-range loudspeaker system. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2265H low-frequency driver measuring 380 mm (15 in) and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker includes a large format Progressive Transition waveguide with a 60° x 60° coverage pattern that is rotatable, allowing installation in either vertical or horizontal orientation. The system incorporates high-slope passive crossover networks to minimize frequency band overlap and has controlled off-axis response to support array configurations.
Features:
- 60° x 60° coverage
- 2265H differential drive low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-amp/passive switchable
- FIR tuning for optimized frequency and phase response
- Coverage consistency
| Frequency Range | 34 Hz - 20 kHz |
|---|---|
| Frequency Response | 40 Hz - 18 kHz |
| Coverage | 60° x 40° / 60° x 60° / 90° x 50° / 120° x 60° |
| LF Driver | 1 x JBL 2265H 15 in Differential Drive driver with 3 in dual voice coil |
| HF Driver | JBL 2432H, 1.5 in exit compression driver, 3 in voice coil |
| System Type | 15" Two-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr; 750 W (3000 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode: LF: 128 dB SPL cont avg (134 dB peak); HF: 135 dB SPL cont avg (141 dB peak); Passive mode: 124 dB SPL cont avg (130 dB peak) |
| System Sensitivity (1W @ 1m) | Passive mode: 96 dB SPL |
| Nominal Impedance | 8ohms |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
| Enclosure | Trapezoidal with 15° side angles, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
