Item # ALA20T-B
TWENTY 3" FULL RANGE SPEAKER AND SEVEN TWEETER LINE ARRAY SPEAKER WITH 60W 70.7V TRANSFORMER - BLACK
Item # ALA20T-B
TWENTY 3" FULL RANGE SPEAKER AND SEVEN TWEETER LINE ARRAY SPEAKER WITH 60W 70.7V TRANSFORMER - BLACK
- UM: EA
- Brand: ATLAS IED

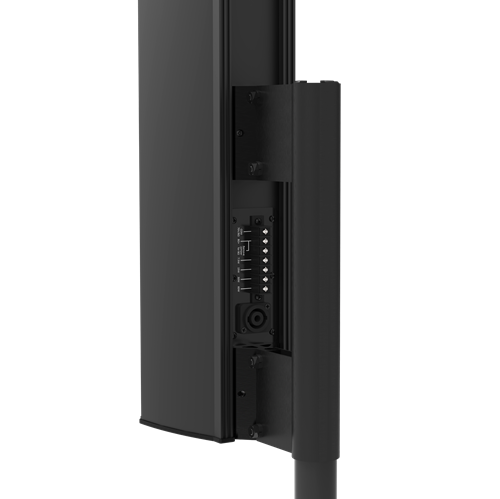

The ALA20T-B column line array speaker delivers maximum pattern control performance in a minimum footprint and excels in applications that require excellent speech intelligibility. The ALA20T-B''s transducer configuration combines twenty tight packed 3" full range drivers and six 3/4" high frequency tweeters in an extruded aluminum housing to offer both durability and optimum sound reproduction. The lightweight and easy to install enclosure has contemporary aesthetics that are a compliment to any environment. The back of the enclosure incorporates vertical channels that accept the included wall mount allowing the installer to slide the mount to the location that provides the desired vertical tilt.
Note: Pole and pole mount bracket sold separately.
Features:
- 45° Vertical Coverage
- 135° Horizontal Coverage
- Twenty (20) Proprietary 3" (76mm) Full Range Drivers
- Barrier Strip and NL-4 Terminals
- Barrier Strip and NL-4 Terminals
- Lightweight Aluminum Housing
- Wall Mount Bracket Included
| 8Ω RMS Power | 500 Watts |
|---|---|
| 70.7V Power Taps | 7.5, 15, 30, & 60 Watts |
| Dispersion | 135° H & 40° V |
| Sensitivity | 97dB 1W/1m |
| Frequency Response | 110Hz - 20kHz |
| Height | 65.75" (1670mm) |
| Depth | 5.43" (137.9mm) |
| Width | 4.61" (117mm) |
| Warranty Period | 60 months from date of purchase |
