Item # AL7115
HIGH POWER 1 X 15" LOW FREQUENCY LOUDSPEAKER. 1 X 15" 2265H DIFFERENTIAL DRIVE WOOFER.
Click image to enlarge
Item # AL7115
HIGH POWER 1 X 15" LOW FREQUENCY LOUDSPEAKER. 1 X 15" 2265H DIFFERENTIAL DRIVE WOOFER.
- UM: EA
- Estimated Weight: 57.0
- Brand: JBL / HARMAN

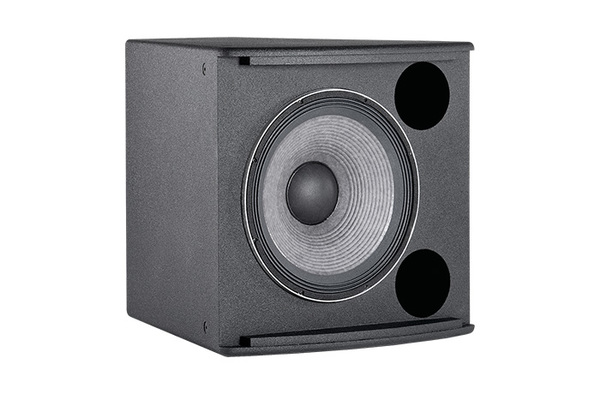

AL7115 is a low-frequency loudspeaker system featuring a single 380 mm (15 in) Differential Drive low-frequency driver. The driver is housed in a front-loaded, vented, trapezoidal cabinet equipped with M10 threaded suspension points. Pre-engineered array bracketry is available for this model.
Features:
- 15" 2265H Differential Drive Low-Frequency Driver
- Large vent area for high output with low distortion
- Compatible with AE Series mid-high frequency and compact 2-way models
| Frequency Range | 40 Hz – 4.2 kHz |
|---|---|
| Frequency Response | 47 Hz - 3.0 kHz |
| Transducer Power Rating (AES) | 1000 W (4000 W peak), 2 hrs |
| System Power Rating | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB-SPL cont avg (133 dB peak) 50 Hz–125 Hz, 126 dB-SPL cont avg (132 dB peak) 125 Hz–800 Hz |
| System Sensitivity (1w @ 1m) | 97 dB 50 Hz–800 Hz |
| Nominal Impedance | 8ohms |
| LF Driver | 1 x JBL 2265H 15 in Differential Drive driver with 3 in dual voice coil |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 13 points, M10 threaded hardware |
| baffle | Powder coated 14 gauge perforated steel with black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant barrier strip terminals, accepts up to 5.2 sq mm wire or 9 mm spade lugs |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers, planar array frame kit |
| Nominal LF Driver Impedance | 8ohms |
