Item # AH99-12T-BSG
12" 2-WAY STADIUM HORN SYSTEM 90° X 90° - BATTLE SHIP GREY
Item # AH99-12T-BSG
12" 2-WAY STADIUM HORN SYSTEM 90° X 90° - BATTLE SHIP GREY
- UM: EA
- Estimated Weight: 136.0
- Brand: ATLAS IED
AtlasIED model AH99-12T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.
Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

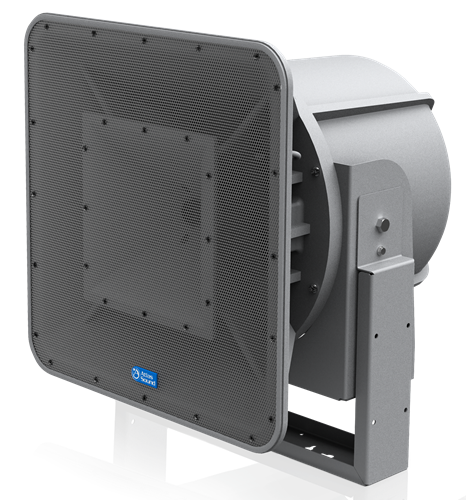

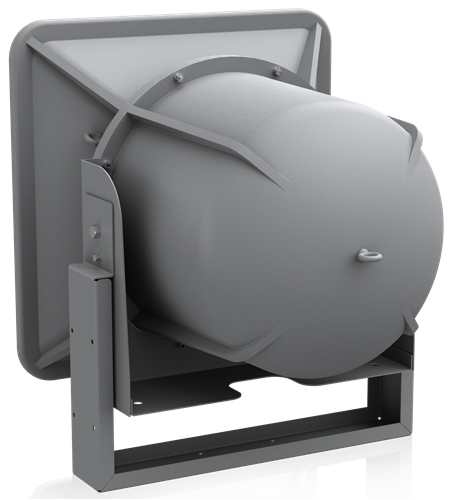

Weather resistant construction features of the AH99-12T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the single 12" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
Features:
- Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 90 º Vertical (2kHz Octave Band)
- Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
| Power Taps | 7.5, 15, 30, and 60 Watts & 8Ω |
|---|---|
| Sensitivity | 101dB SPL |
| Frequency Response | 80Hz - 15kHz |
| Driver Type | 1" HF and 12" LF |
| Dispersion | 90° x 90° |
| Width | 22.06" (56.03 cm) |
| Weight | 87.00 lbs (39.46 kgs) |
| Warranty Period | 60 months from date of purchase |
