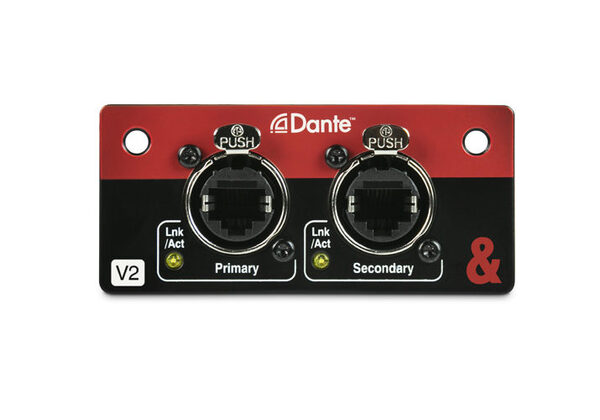

Item # AH-M-SQ-SDANTE64-A
64 X 64 SQ DANTE CARD FOR SQ SERIES, AHM-64 - 96KHZ / 48KHZ

Item # AH-M-SQ-SDANTE64-A
64 X 64 SQ DANTE CARD FOR SQ SERIES, AHM-64 - 96KHZ / 48KHZ
- UM: EA
- Estimated Weight: 1.0
- Brand: ALLEN & HEATH

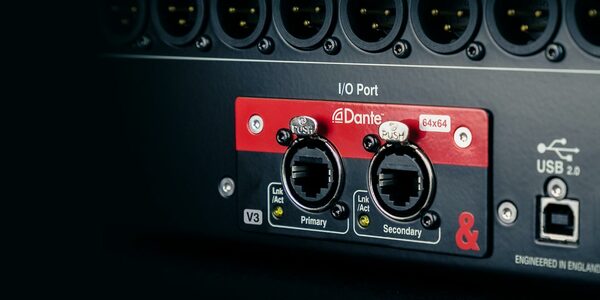

The Allen & Heath SQ Dante 64×64 is an expansion card designed to integrate SQ series mixers and AHM audio matrix processors into Dante audio networks. It provides 64×64 channels of bidirectional audio at 96kHz or 48kHz, facilitating seamless connections with Dante-enabled devices such as DT expanders, wireless systems, amplifiers, and preamps. The card supports multichannel recording and playback via the optional Dante Virtual Soundcard and features two Ethercon ports with redundant and switch modes, an internal control network bridge, and AES67 compatibility. This expansion enhances system flexibility and scalability for professional audio applications.
- 64×64 channel audio and control over a network
- 96kHz or 48kHz operation
- Multichannel recording / playback using Dante Virtual Soundcard (available separately)
- Two ports with redundant and switch modes
- Internal Control Network Bridge
- Locking Ethercon connectors
- Dante Domain Manager ready
- AES67 compatible
- V1 compatible with SQ
- V2 compatible with SQ (V1.5+) and AHM-64
