Item # AH-AHM-64

64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,

  • MAP: $3,999.00 / EA
  • List Price: $3,999.00 / EA
  • Log in to see if custom discounts apply
    AH-AHM-64 64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,
    AH-AHM-64 64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,
    Click image to enlarge
    AH-AHM-64 64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,
    AH-AHM-64 64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,

    Item # AH-AHM-64

    64X64 AUDIO MATRIX PROCESSOR. 12X12 LOCAL ANALOG I/O, UP TO 128X128 AUDIO NETWORKING,

    • UM: EA
    • Estimated Weight: 20.0
    • Brand: ALLEN & HEATH

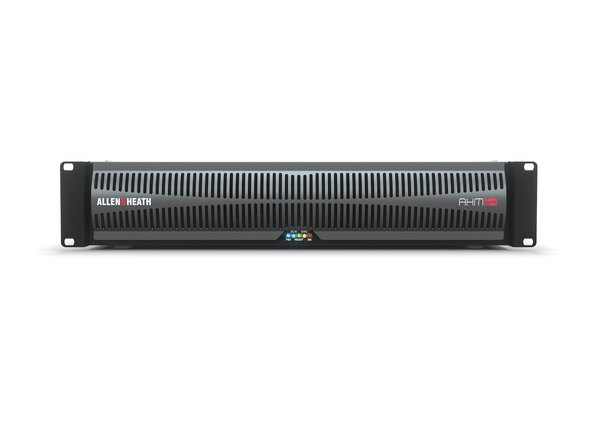

    The most powerful matrix processor in the AHM range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.



    • 64×64 Processing Matrix

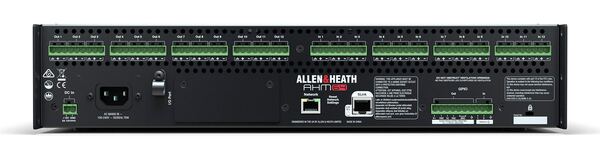

    • 12×12 Local Analogue I/O

    • I/O Port for Audio Networking (Up to 128×128)

    • Dante 96kHz Option Card (AES67 and DDM ready)

    • 128×128 Built-in SLink Port for Audio Expansion

    • 64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing

    • 96kHz FPGA Core With Ultra-low Latency

    • Compatible With IP1, IP6, IP8 Remote Controllers

    • 2×2 Local GPIO Plus Networkable GPIO Interface

    • TCP/IP Protocol for Third Party Integration

    • Crestron, AMX and Extron Drivers

    • Mac / Windows System Manager Software

    • Custom Control app and Editor for BYOD

    • 32 User Profiles

    • Integrated Stereo Playback

    • Event Scheduler

    • DC backup power supply
