Item # AE-4D

AES/EBU DANTE CONVERTER W/BUILT-IN DSP

  • MAP: $599 / EA
  • List Price: $799.00 / EA
  • Usually ships in 3-7 days
  • Log in to see if custom discounts apply
  • Case Qty: 5
AE-4D AES/EBU DANTE CONVERTER W/BUILT-IN DSP
AE-4D AES/EBU DANTE CONVERTER W/BUILT-IN DSP
Click image to enlarge
AE-4D AES/EBU DANTE CONVERTER W/BUILT-IN DSP
AE-4D AES/EBU DANTE CONVERTER W/BUILT-IN DSP

Item # AE-4D

AES/EBU DANTE CONVERTER W/BUILT-IN DSP

  • UM : EA
  • Estimated Weight: 2.9
  • Brand: TASCAM

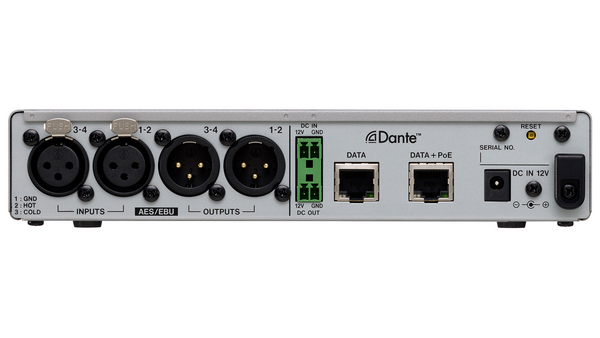

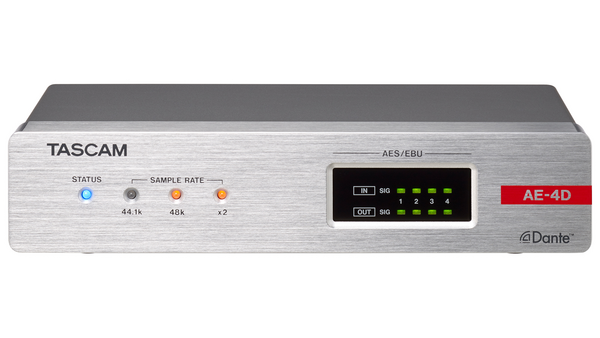

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.

Features:

  • 4 AES/EBU input/output
  • 4 AES/EBU inputs with sampling rate converter
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.For simple control: simple app design for only the necessary functions such as area volume settings, etc.
  • Half-rack mountable size
  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor digital input/output signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included
  • Optional accessories:AC adapter PS-P1220E for redundant power supply available Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
Power PoE class 0, TASCAM PS-P1220E
Power consumption 3W
Dimensions 214(W) × 44.45(H) × 136.1(D)mm
Weight 795g
