Item # ADX12

12" MINIATURE GOOSENECK CONDENSER MICROPHONE, WITH UNIFORMLY CONTROLLED CARDIOID PATTERN / BLACK

  • MAP: $230.00 / EA
  • List Price: $276.00 / EA
  • Log in to see if custom discounts apply

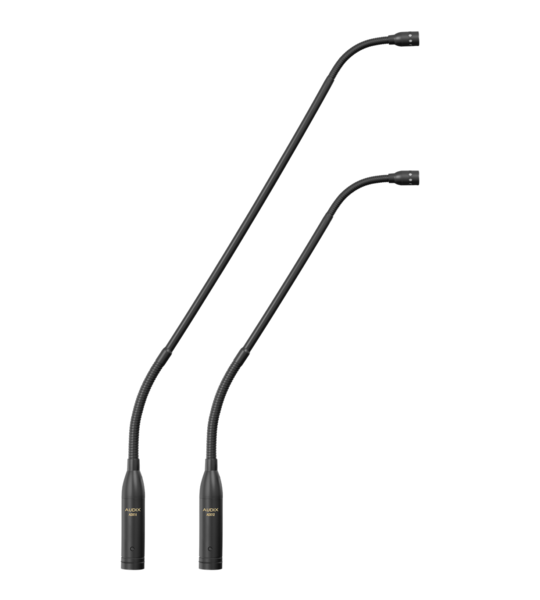

    ADX12 12" MINIATURE GOOSENECK CONDENSER MICROPHONE, WITH UNIFORMLY CONTROLLED CARDIOID PATTERN / BLACK
    Click image to enlarge
    ADX12 12" MINIATURE GOOSENECK CONDENSER MICROPHONE, WITH UNIFORMLY CONTROLLED CARDIOID PATTERN / BLACK

    Item # ADX12

    12" MINIATURE GOOSENECK CONDENSER MICROPHONE, WITH UNIFORMLY CONTROLLED CARDIOID PATTERN / BLACK

    • UM: EA
    • Estimated Weight: 2.1
    • Brand: AUDIX

    The ADX12 & ADX18 are professional miniature gooseneck condenser microphones designed for applications such as podium, presentation, meetings, and teleconferencing.



    With a uniformly controlled cardioid polar pattern, the ADX12 & ADX18 help isolate the speaker from ambient noise. The ADX series is available in a hypercardioid polar pattern for tighter pick-up control.

    The ADX12 and ADX18 are designed with integrated preamp circuitry built into the base of the XLR. They can be mounted permanently via the supplied flange mount or with an optional base with an internal shock mount (see model ATS10, ATS1, ATS1L). The microphone may also be used on a standard microphone stand using the DCLIP snap to fit the microphone holder.



    Designed, manufactured, assembled, and tested by Audix in the USA.



    Transducer Type

    Pre-Polarized Condenser

    Frequency Response

    40 Hz – 18 kHz

    Polar Pattern

    Cardioid/Hypercardioid

    Output Impedance

    150 ohms

    Sensitivity

    24 mV (C) / Pa @ 1k 30 mV (HC) / Pa @ 1k

    Equivalent Noise Level

    28 dB (A weighted)

    Signal to Noise Ratio

    66 dB

    Maximum SPL

    =120 dB

    Power Requirements

    18 – 52 Volts phantom

    Connector

    3-pin XLRm

    Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

    Materials / Finish

    Machined Aluminum / Black Finish

    Weight

    113 g / 4 oz (ADX12) 159 g / 5.6 oz (ADX18)

    Length

    403 mm / 16 in (ADX12) 558 mm / 22 in (ADX18)
