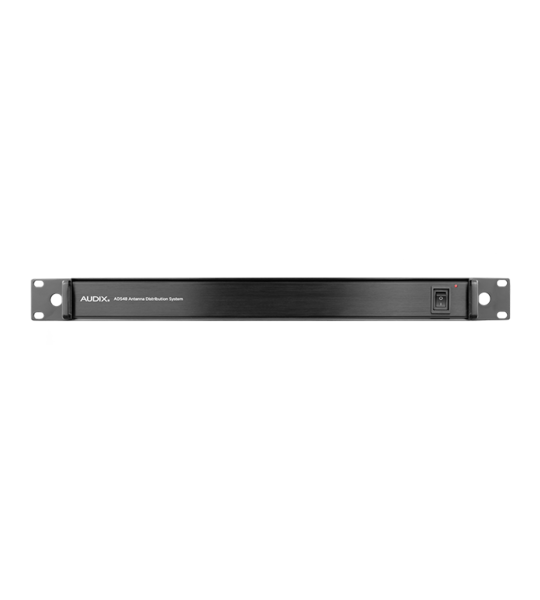

    ADS48 Wireless Microphone Accessory – Antenna Distribution System Combines 4 – Two Channel Systems (8 Channels) with One Set of Antennas and One Power Supply

    The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply which eliminates the need for the individual DC power supplies normally needed for each receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal.

    When used in conjunction with the AP42 or AP62 two-channel systems, the ADS48 is able to run 8 channels of wireless on a single pair of antennas and the power supply takes up only 5 rack spaces.


    1x ADS48 Antenna Distribution Unit with rack mount
    2x Antennas
    1x IEC power cable
    4x Power Jumper Cables to provide power to individual receivers
    8x BNC-to-BNC Coaxial Cables for pass-through connection for up to 4 additional receivers (single or dual)
    2x Coaxial cables for front mounting antennas
